Martin 10B96 MAR10B96

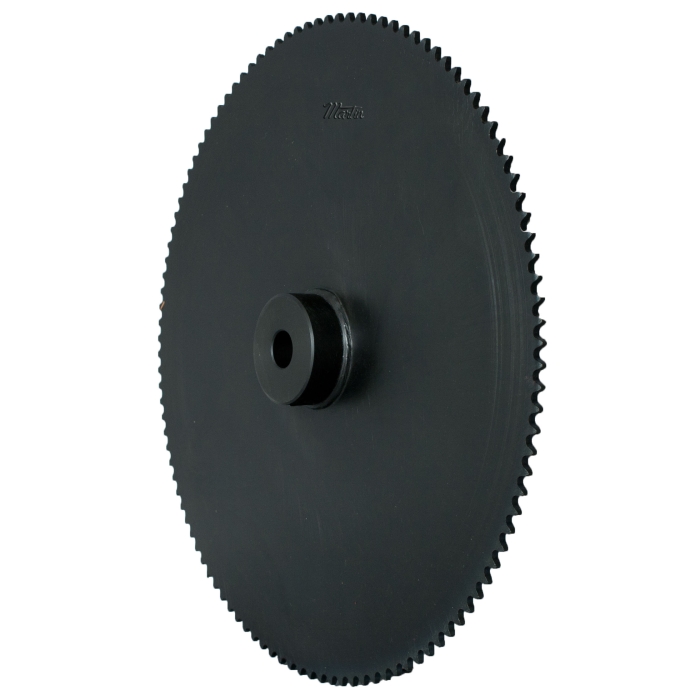

Martin 10B96 Type B Single Strand Stock Bore Welded Roller Chain Sprocket, 25 to 70 mm Dia Bore, 292.861 mm OD, #10B-1 Chain, 96 Teeth, 15.875 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR10B96
- MPN: 10B96
- UPC: 697950399577
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Metric B style sprockets are flat sprockets with a hub extension welded on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.
Martin Roller Chain Sprocket, Type B Single Strand Stock Bore Welded, 25 to 70 mm Bore, 292.861 mm OD, #10B-1 Chain, 96 Teeth, 15.875 mm Pitch, 485.191 mm Pitch Diameter, 106.909 mm Diameter Hub, 44 mm Length Through Bore, Steel
| Bore Diameter | : | 25 to 70 mm |
| Chain Size | : | #10B-1 |
| Hub Diameter | : | 106.909 mm |
| Length Through Bore | : | 44 mm |
| Material | : | Steel |
| Number of Teeth | : | 96 |
| Outside Diameter | : | 292.861 mm |
| Pitch Diameter | : | 485.191 mm |
| Pitch | : | 15.875 mm |
| Type | : | Type B Single Strand Stock Bore Welded |
- Without hardened teeth
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
