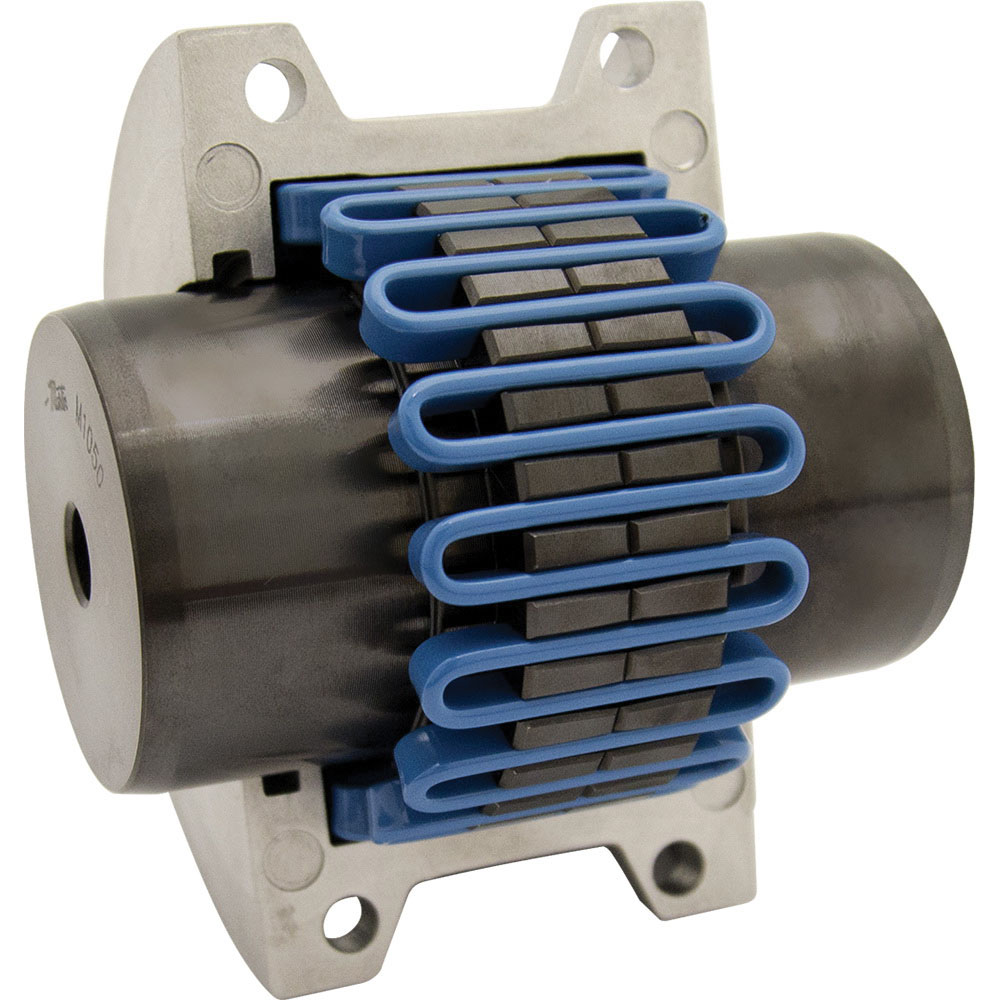

Martin 1040M10 MAR1040T10
Martin Blue-Flex™ 1040M10 Reboreable Grid Coupling Assembly, 0.5 to 1.62 in Dia Bore, 4.63 in OD, 4.12 in OAL, 2200 in-lb Torque, 4500 rpm Max
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR1040T10
- MPN: 1040M10
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Martin Blue-Flex™ grid couplings handle high torque levels and high RPM applications in a small package. Unlike other metallic couplings, Martin Blue-Flex™ grid couplings have the ability to reduce vibration and cushion shock loads to driven and driving power transmitting equipment components. Martin Blue-Flex™ couplings are available in sizes 1020-1170 in vertical and horizontal configurations with a rough stock bore.
Martin Blue-Flex™ Grid Coupling Assembly, Reboreable, 0.5 to 1.62 in Bore, 4.63 in OD, 4.12 in Overall Length, 2-1/4 in OD Hub, 2 in Length Through Bore, 2200 in-lb Torque, 4500 rpm Maximum, 3.22 hp Power, Steel, 4.63 in H Dimensions
| Bore Diameter | : | 0.5 to 1.62 in |
| Dimensions | : | 4.63 in H |
| Hub Size | : | 2-1/4 in OD |
| Length Through Bore | : | 2 in |
| Material | : | Steel |
| Maximum Speed | : | 4500 rpm |
| Outside Diameter | : | 4.63 in |
| Overall Length | : | 4.12 in |
| Power Rating | : | 3.22 hp |
| Torque Rating | : | 2200 in-lb |
| Type | : | Reboreable |
