Martin 100E54 MAR100E54

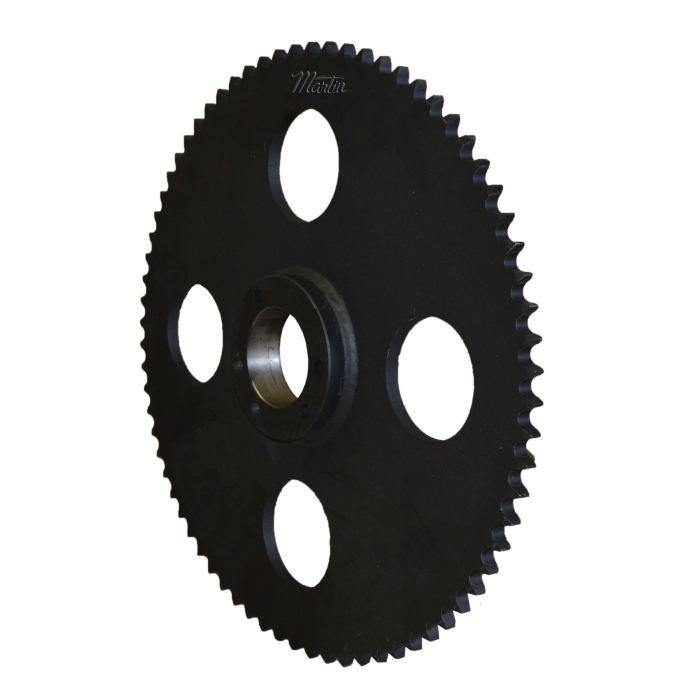

Martin 100E54 Type C Single Strand Stock Bore Welded Roller Chain Sprocket With Lightening Holes, 3-1/2 in Dia Bore, 22.212 in OD, #100 Chain, 54 Teeth, 1-1/4 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR100E54
- MPN: 100E54
- UPC: 697950023656
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
QD® (Quick Detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.
Martin Roller Chain Sprocket, Type C Single Strand Stock Bore Welded, 3-1/2 in Bore, 22.212 in OD, #100 Chain, 54 Teeth, 1-1/4 in Pitch, 21.498 in Pitch Diameter, 6-1/4 in Diameter Hub, 1/2-13 NC Screw, 2-5/8 in Length Through Bore, QD® E Bushing, Steel
| Bore Diameter | : | 3-1/2 in |
| Bushing Type | : | QD® E |
| Chain Size | : | #100 |
| Hub Diameter | : | 6-1/4 in |
| Length Through Bore | : | 2-5/8 in |
| Material | : | Steel |
| Number of Teeth | : | 54 |
| Outside Diameter | : | 22.212 in |
| Pitch Diameter | : | 21.498 in |
| Pitch | : | 1-1/4 in |
| Screw Size | : | 1/2-13 NC |
| Type | : | Type C Single Strand Stock Bore Welded |
- Without hardened teeth
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
