Martin 10 5V 850 TB MAR10-5V850TB
  1. pin-int

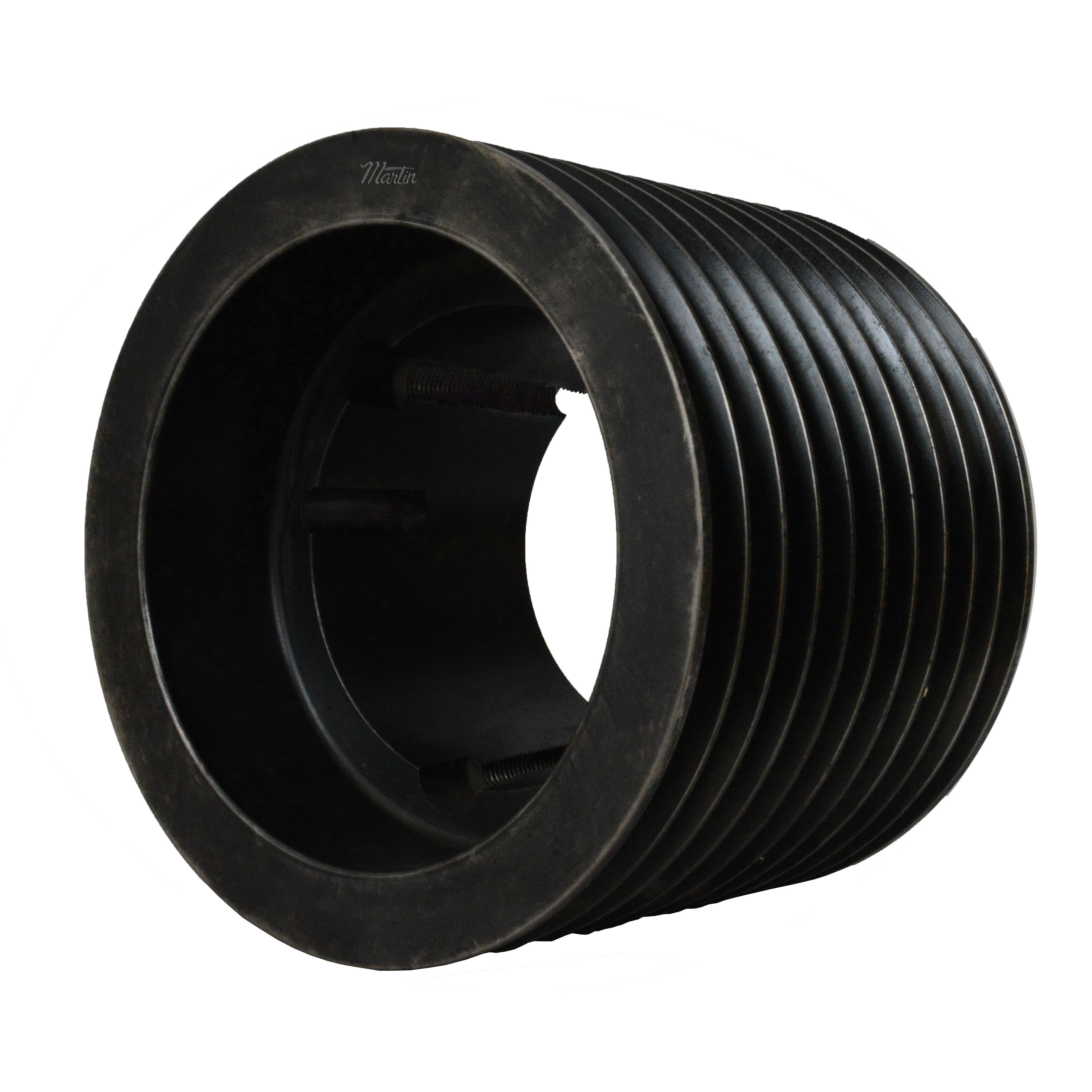

Martin 10 5V 850 TB MAR10-5V850TB

Martin Hi-Cap® 10 5V 850 TB Type A Solid Wedge Sheave, 1 to 2-3/4 in Bushed Bore, 8-1/2 in OD, 10 Grooves, 8.4 in Dia Pitch, 7-3/16 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR10-5V850TB
  • MPN: 10 5V 850 TB
  • UPC: 697950153377
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Hi-Cap® sheaves (narrow v-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-Belt sheaves to run with 3V, 5V, and 8V belts.

Martin Hi-Cap® Wedge Sheave, Type A Solid, Bushed Bore, 1 to 2-3/4 in Bore, 8-1/2 in OD, 8.4 in Pitch Diameter, 10 Grooves, 7-3/16 in Face Width, TB 3030 Bushing, 3 in Overall Length, For Use With: 5V Cross Section Belt, Cast Iron

Bore Diameter      :      1 to 2-3/4 in
Bore Type      :      Bushed
Bushing Type      :      TB 3030
Face Width      :      7-3/16 in
Material      :      Cast Iron
Number of Grooves      :      10
Outside Diameter      :      8-1/2 in
Overall Length      :      3 in
Pitch Diameter      :      8.4 in
Suitable For Use With      :      5V Cross Section Belt
Type      :      Type A Solid
  • Item Features 01=Interchangeable with other manufacturer's taper bushings
  • Item Features 02=Class 30 gray iron
  • Item Features 03=Tolerances adhere to industry guidelines
  • Item Features 04=Precise machining and processes ensure consistent finish and high quality
  • Item Features 05=Statically balanced with maximum rim speed marked on print
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_103V1060E_Specification_Sheet.pdf
