Martin 10 5V 3750 M MAR10-5V3750
  1. pin-int

Martin 10 5V 3750 M MAR10-5V3750

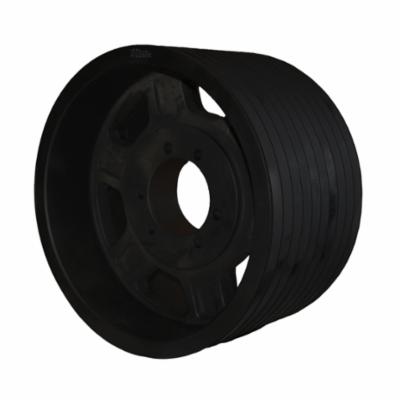

Martin Hi-Cap® 10 5V 3750 M Arm/Spoke Type B-3 Wedge Stock Sheave, 2 to 5-1/2 in QD® Bushed Bore, 37-1/2 in OD, 10 Grooves, 37.4 in Dia Pitch, 7.188 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR10-5V3750
  • MPN: 10 5V 3750 M
  • UPC: 697950086484
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.

Martin Hi-Cap® Wedge Stock Sheave, Arm/Spoke Type B-3, QD® Bushed Bore, 2 to 5-1/2 in Bore, 37-1/2 in OD, 37.4 in Pitch Diameter, 10 Grooves, 7.188 in Face Width, M Bushing, 7-1/4 in Overall Length, For Use With: 5V-Cross Section V-Belts, Cast Iron

Bore Diameter      :      2 to 5-1/2 in
Bore Type      :      QD® Bushed
Bushing Type      :      M
Face Width      :      7.188 in
Material      :      Cast Iron
Number of Grooves      :      10
Outside Diameter      :      37-1/2 in
Overall Length      :      7-1/4 in
Pitch Diameter      :      37.4 in
Suitable For Use With      :      5V-Cross Section V-Belts
Type      :      Arm/Spoke Type B-3
  • Class 30 Gray Iron
  • Tolerances adhere to industry guidelines
  • Precise machining and processes ensure consistent finish and high quality
  • Statically balanced with maximum rim speed marked on print
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_3_5V_710_SF_Specification_Sheet.pdf
