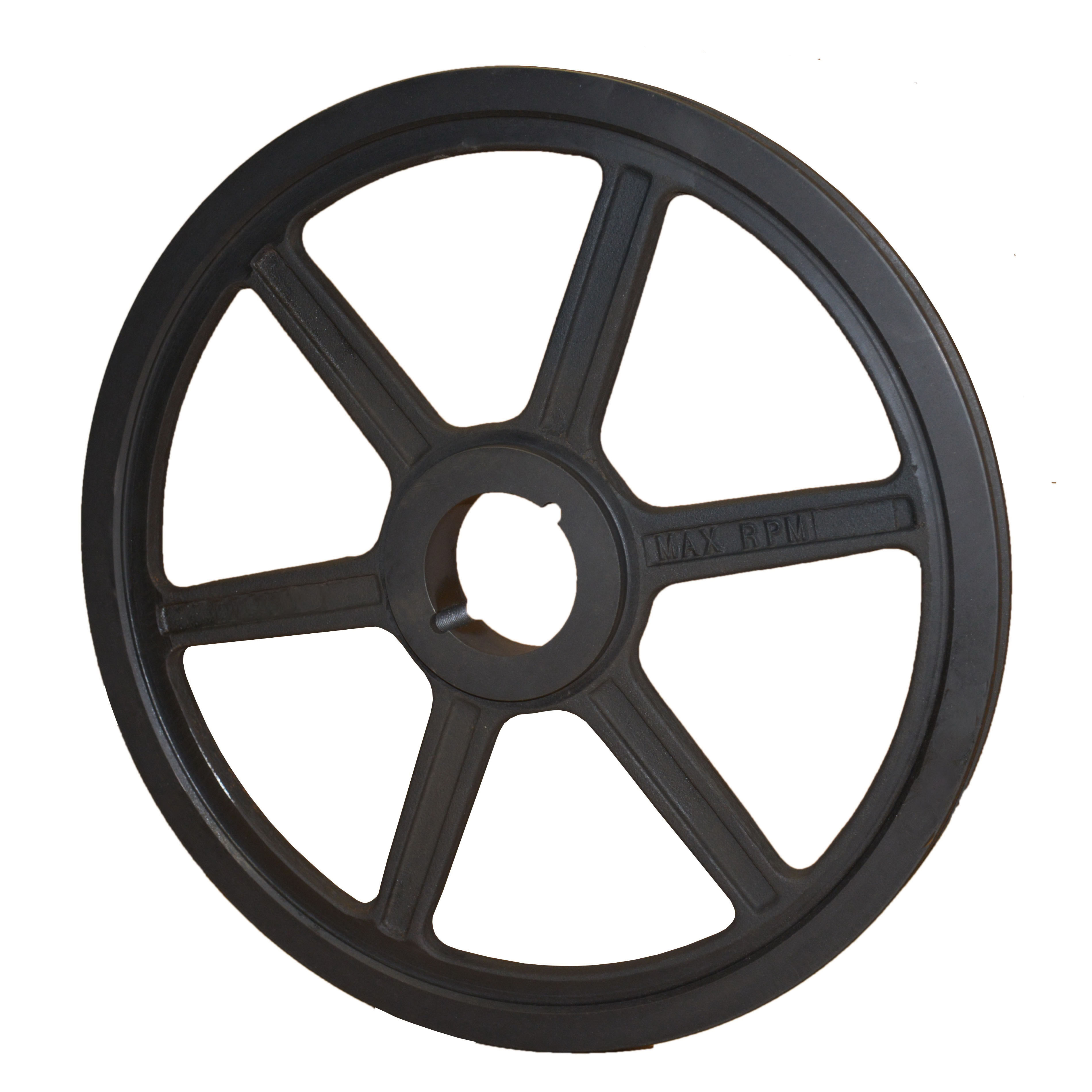

Martin 1 B 160 TB MAR1B160TB

Martin 1 B 160 TB Type C Single Groove Arm/Spoke Conventional Sheave, Bushed Bore, 1/2 to 2-1/4 in Dia Bore, 16.35 in OD, 16 in Dia Pitch, 1 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR1B160TB
  • MPN: 1 B 160 TB
  • UPC: 697950514864
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Conventional (wide/classical) sheaves are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-Belt sheaves to accept "A", "B", "C", and "D" belts.

Martin Conventional Sheave, Type C Single Groove Arm/Spoke, Bushed Bore, 1/2 to 2-1/4 in Bore, 16.35 in OD, 16 in Pitch Diameter, 1 in Face Width, TB 2517 Bushing, 1-15/16 in Overall Length, For Use With: A/B Cross Section Belt, Cast Iron

Bore Diameter      :      1/2 to 2-1/4 in
Bore Type      :      Bushed
Bushing Type      :      TB 2517
Face Width      :      1 in
Material      :      Cast Iron
Outside Diameter      :      16.35 in
Overall Length      :      1-15/16 in
Pitch Diameter      :      16 in
Suitable For Use With      :      A/B Cross Section Belt
Type      :      Type C Single Groove Arm/Spoke
  • Interchangeable with other manufacturer's QD® bushings
  • Class 30 gray iron
  • Tolerances adhere to industry guidelines
  • Precise machining and processes ensure consistent finish and high quality
  • Statically balanced with maximum rim speed marked on print
