Martin 1 3V 800 TB MAR1-3V800TB
  1. pin-int

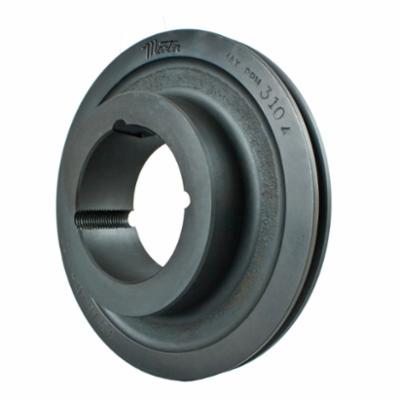

Martin 1 3V 800 TB MAR1-3V800TB

Martin Hi-Cap® 1 3V 800 TB Type B-2 Web Single Groove Sheave, TB Bushed Bore, 1/2 to 2-1/2 in Dia Bore, 8 in OD, 7.95 in Dia Pitch, 0.688 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR1-3V800TB
  • MPN: 1 3V 800 TB
  • UPC: 697950152868
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.

Martin Hi-Cap® Single Groove Sheave, Type B-2 Web, TB Bushed Bore, 1/2 to 2-1/2 in Bore, 8 in OD, 7.95 in Pitch Diameter, 0.688 in Face Width, 2517 Bushing, 1.81 in Overall Length, For Use With: 3V-Cross Section V-Belts, Cast Iron

Bore Diameter      :      1/2 to 2-1/2 in
Bore Type      :      TB Bushed
Bushing Type      :      2517
Face Width      :      0.688 in
Material      :      Cast Iron
Outside Diameter      :      8 in
Overall Length      :      1.81 in
Pitch Diameter      :      7.95 in
Suitable For Use With      :      3V-Cross Section V-Belts
Type      :      Type B-2 Web
  • Item Features 01=Class 30 Gray Iron
  • Item Features 02=Tolerances adhere to industry guidelines
  • Item Features 03=Precise machining and processes ensure consistent finish and high quality
  • Item Features 04=Statically balanced with maximum rim speed marked on print
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_3_5V_710_SF_Specification_Sheet.pdf
