Martin 08A22 MAR08A22

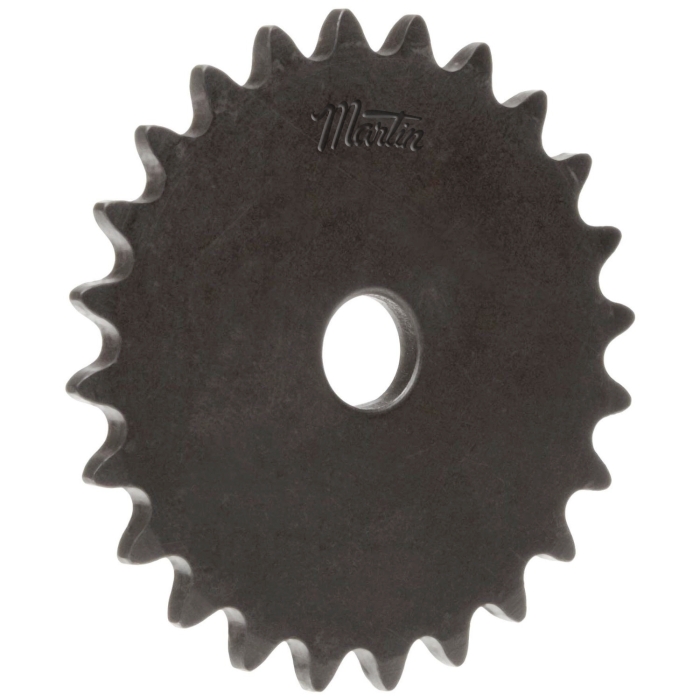

Martin 08A22 Type A Single Strand Solid Stock Bore Roller Chain Sprocket, 12 mm Dia Bore, 96.605 mm OD, #08B-1 Chain, 22 Teeth, 12.7 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR08A22
- MPN: 08A22
- UPC: 697950397030
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Metric A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.
Martin Roller Chain Sprocket, Type A Single Strand Solid Stock Bore, 12 mm Bore, 96.605 mm OD, #08B-1 Chain, 22 Teeth, 12.7 mm Pitch, 89.239 mm Pitch Diameter, 28 mm Length Through Bore, Steel
| Bore Diameter | : | 12 mm |
| Chain Size | : | #08B-1 |
| Length Through Bore | : | 28 mm |
| Material | : | Steel |
| Number of Teeth | : | 22 |
| Outside Diameter | : | 96.605 mm |
| Pitch Diameter | : | 89.239 mm |
| Pitch | : | 12.7 mm |
| Type | : | Type A Single Strand Solid Stock Bore |
- Item Features 01=Without hardened teeth
- Item Features 02=Precise machining and processes ensure consistent finish and high quality
- Item Features 03=Bores are concentric to pitch line, minimizing run out
- Item Features 04=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
