Martin 06B10 MAR06B10

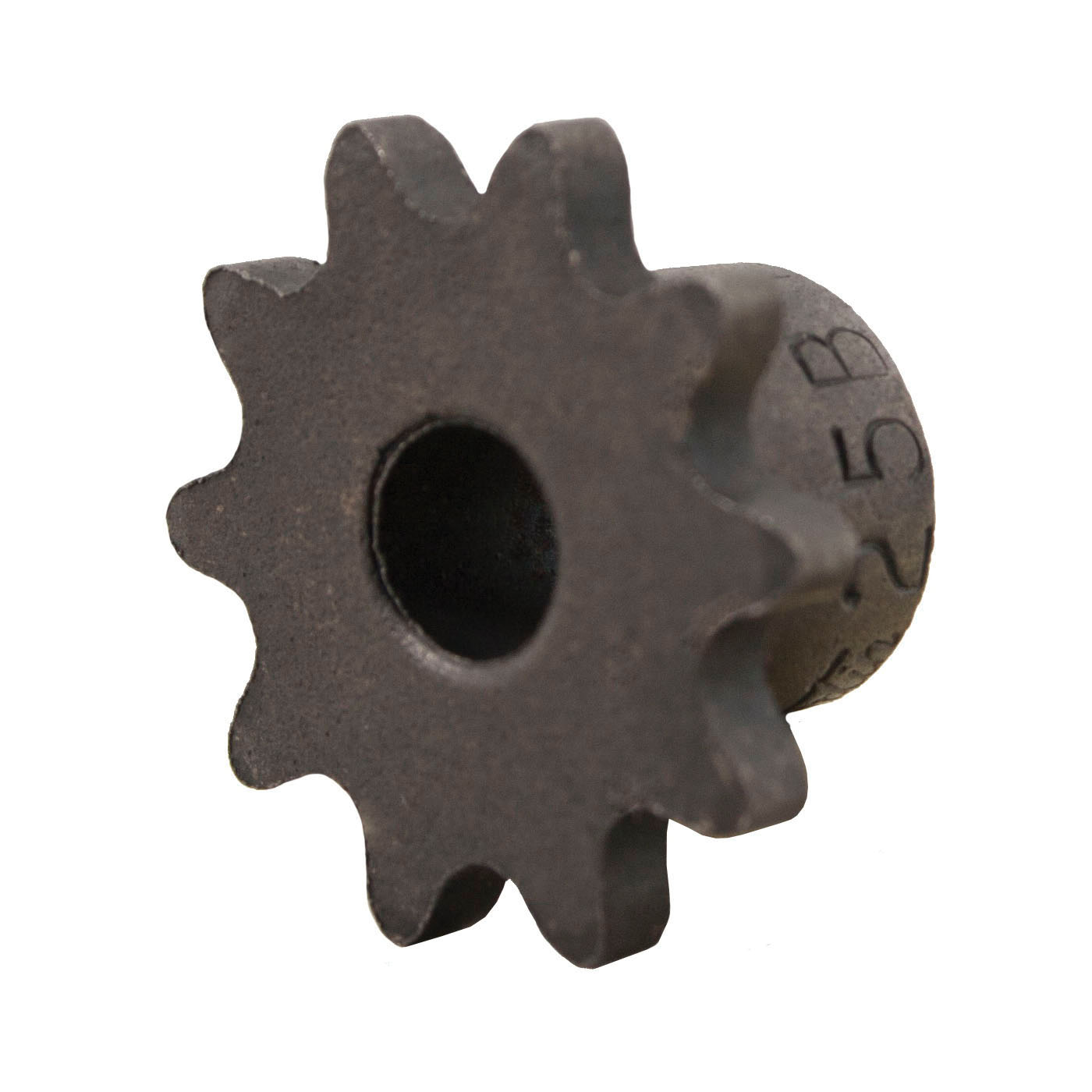

Martin 06B10 Type B Single Strand Solid Stock Bore Roller Chain Sprocket, 8 to 12.303 mm Dia Bore, 36.38 mm OD, #06B-1 Chain, 10 Teeth, 9.525 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR06B10
- MPN: 06B10
- UPC: 697950395364
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Metric B style sprockets are flat sprockets with a hub extension on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and harden teeth are quick alterations that can be made.
Martin Roller Chain Sprocket, Type B Single Strand Solid Stock Bore, 8 to 12.303 mm Bore, 36.38 mm OD, #06B-1 Chain, 10 Teeth, 9.525 mm Pitch, 30.824 mm Pitch Diameter, 19.964 mm Diameter Hub, 22 mm Length Through Bore, Steel
| Bore Diameter | : | 8 to 12.303 mm |
| Chain Size | : | #06B-1 |
| Hub Diameter | : | 19.964 mm |
| Length Through Bore | : | 22 mm |
| Material | : | Steel |
| Number of Teeth | : | 10 |
| Outside Diameter | : | 36.38 mm |
| Pitch Diameter | : | 30.824 mm |
| Pitch | : | 9.525 mm |
| Type | : | Type B Single Strand Solid Stock Bore |
- Without hardened teeth
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
