Martin 06A76 MAR06A76
Martin 06A76 Type A Single Strand Solid Stock Bore Roller Chain Sprocket, 18 mm Dia Bore, 236.046 mm OD, #06B-1 Chain, 76 Teeth, 9.525 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR06A76
- MPN: 06A76
- UPC: 697950396002
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:

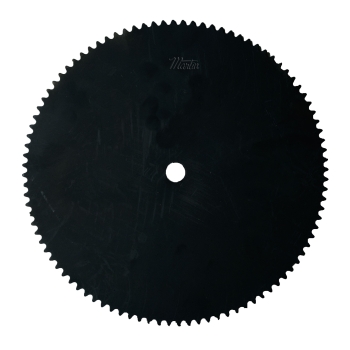

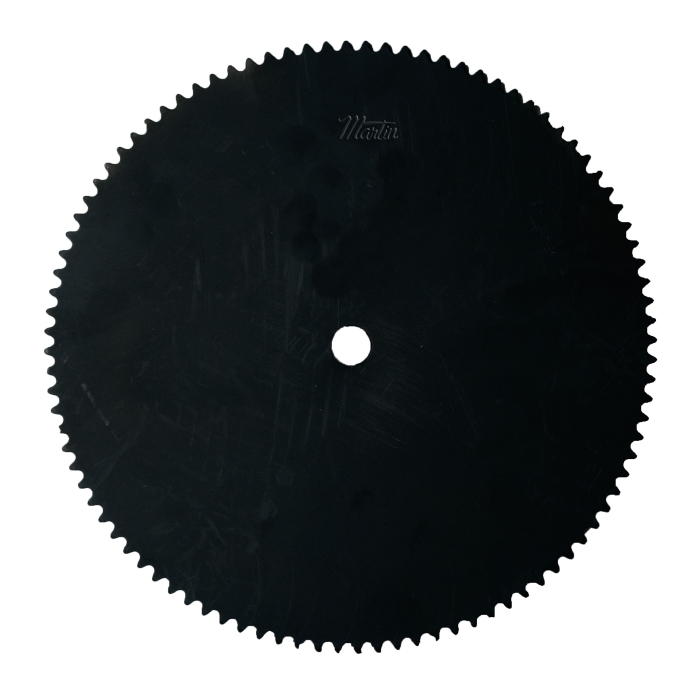

Metric A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.
Martin Roller Chain Sprocket, Type A Single Strand Solid Stock Bore, 18 mm Bore, 236.046 mm OD, #06B-1 Chain, 76 Teeth, 9.525 mm Pitch, 230.49 mm Pitch Diameter, 30 mm Length Through Bore, Steel
| Bore Diameter | : | 18 mm |
| Chain Size | : | #06B-1 |
| Length Through Bore | : | 30 mm |
| Material | : | Steel |
| Number of Teeth | : | 76 |
| Outside Diameter | : | 236.046 mm |
| Pitch Diameter | : | 230.49 mm |
| Pitch | : | 9.525 mm |
| Type | : | Type A Single Strand Solid Stock Bore |
- Without hardened teeth
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Specification Sheet
