Martin 06A54 MAR06A54

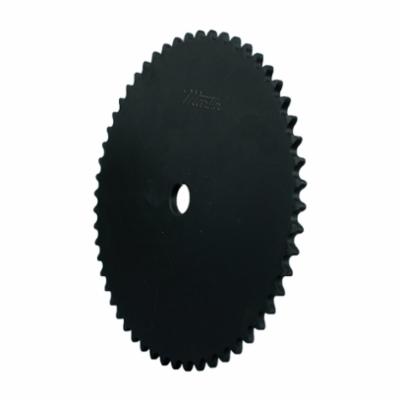

Martin 06A54 Simplex Type A Single Pitch Roller Chain Sprocket, 14 mm Dia Bore, 169.371 mm OD, #06B-1 Chain, 54 Teeth, 9.525 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR06A54
- MPN: 06A54
- UPC: 697950395906
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Metric A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.
Martin Single Pitch Roller Chain Sprocket, Simplex Type A, 14 mm Bore Dia, 169.371 mm Outside Dia, #06B-1 Chain, 54 Teeth, 9.525 mm Pitch, 163.815 mm, 75 mm Hub Dia, 5.309 mm Length Through Bore, Steel
| Bore Diameter | : | 14 mm |
| Chain Size | : | #06B-1 |
| Hub Diameter | : | 75 mm |
| Length Through Bore | : | 5.309 mm |
| Material | : | Steel |
| Number of Teeth | : | 54 |
| Outside Diameter | : | 169.371 mm |
| Pitch Diameter | : | 163.815 mm |
| Pitch | : | 9.525 mm |
| Type | : | Simplex Type A |
- Plate only
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
