Manitou Manufacturing R-5 MANR5
  1. pin-int

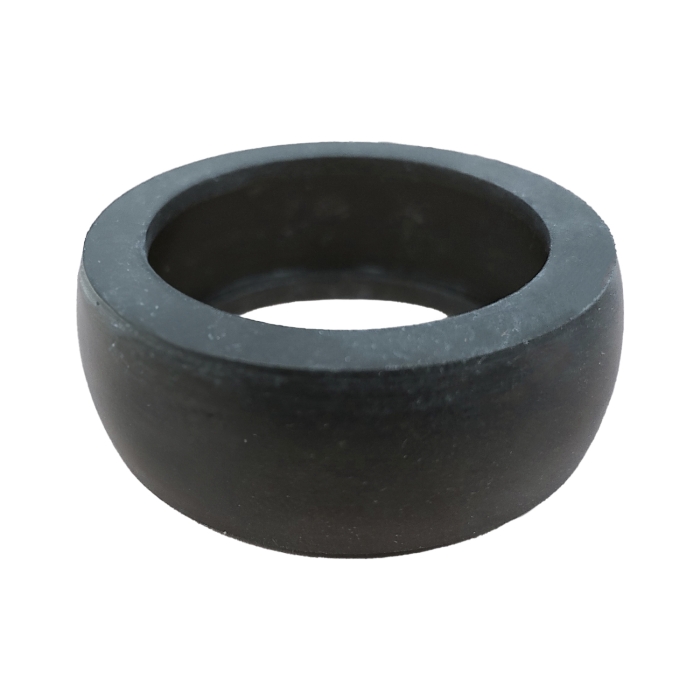

Manitou R-5 Nitrile Rubber Bearing Boot

Manitou R-5 oil-resistant, static-conductive nitrile rubber bearing boot designed for ball bearings with a 47 mm spherical outside diameter. Compatible with select Manitou 52 mm snap-together pillow block sets.

  • Manufacturer: Manitou Manufacturing Co.
  • Brand Name: Manitou Manufacturing
  • Part Number: MANR5
  • MPN: R-5
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Reduce vibration and mounting noise with the Manitou R-5 rubber bearing boot. Engineered for 47 mm spherical-OD ball bearings, its oil-resistant, static-conductive nitrile construction provides a flexible mounting interface within compatible Manitou 52 mm snap-together pillow block sets.

The Manitou Manufacturing R-5 is a nitrile rubber bearing boot designed for mounting spherical outside diameter ball bearings in compatible snap-together pillow block housings. Sized for ball bearings with a 47 mm spherical outside diameter, this boot fits between the bearing's outer surface and the surrounding pillow block housing to help minimize vibration and noise transmission.

Constructed from oil-resistant, static-conductive nitrile rubber, the R-5 is suitable for specialized industrial bearing mounting applications where vibration isolation and noise reduction are important.

The rubber boot surrounds the bearing and is retained between the base and upper strap of the pillow block set. Proper installation requires a compatible housing with turned-up edges on the base and turned-down edges on the upper strap. These retaining features help prevent the rubber from being forced out of the housing when thrust loads are applied.


Compatible Manitou pillow block sets:

  • 52MPB-ST-ZP

  • 52PBM-HR-ZP

  • 52PBM-SS-N


The R-5 is a rubber mounting accessory, not a complete bearing or pillow block assembly. Verify the bearing's spherical outside diameter and housing part number before ordering.

Material      :      Nitrile Rubber
  • Manitou R-5 rubber ball bearing mounting boot
  • Designed for ball bearings with a 47 mm spherical outside diameter
  • Oil-resistant nitrile rubber construction
  • Static-conductive rubber material
  • Helps minimize vibration and noise transmission in bearing mounts
  • Fits between the bearing and compatible snap-together pillow block housing
  • Compatible with Manitou 52MPB-ST-ZP, 52PBM-HR-ZP, and 52PBM-SS-N pillow block sets
  • Requires a housing with retaining edges to prevent rubber extrusion under thrust
  • Rubber bearing boot only; not a complete bearing assembly
