Lovejoy® 68514472003 LOV68514472003

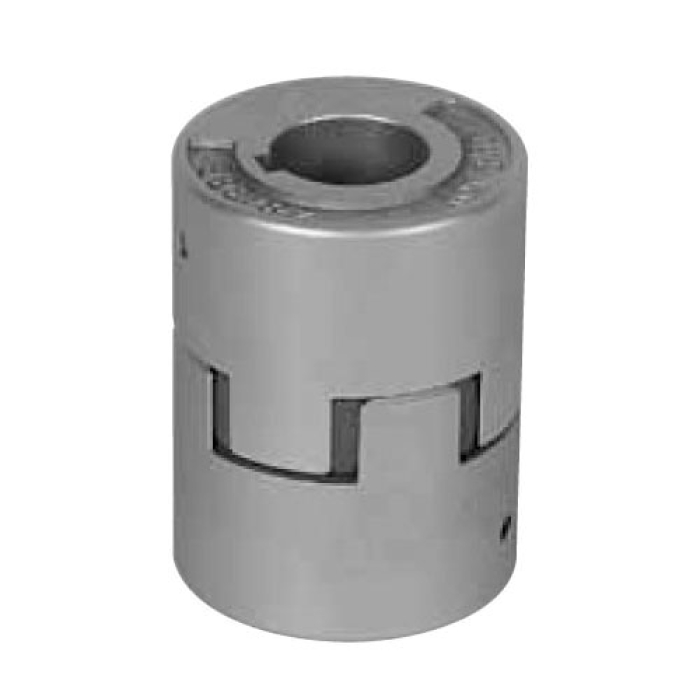

Lovejoy® 68514472003 CJ Series Style A Curved Jaw Coupling Hub With Keyway and Setscrew, 38 Coupling, 28 mm Dia Bore, 44.96 mm L Through Bore, 80 mm Dia Hub, Powdered Metal
- Manufacturer: Lovejoy
- Brand Name: Lovejoy®
- Part Number: LOV68514472003
- MPN: 68514472003
- UPC: 685144720030
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Lovejoy® Curved Jaw Coupling Hub, Style A, Series: CJ Series, 38 Coupling, 28 mm Bore, 80 mm Diameter Hub, 8 mm W x 3.3 mm D Keyway, 7100 rpm Maximum, 44.96 mm Length Through Bore, 5/16-18 Screw, Powdered Metal, Metallic
| Bore Diameter | : | 28 mm |
| Coupling Size | : | 38 |
| Finish | : | Metallic |
| Hub Diameter | : | 80 mm |
| Keyway Size | : | 8 mm W x 3.3 mm D |
| Length Through Bore | : | 44.96 mm |
| Material | : | Powdered Metal |
| Maximum Speed | : | 7100 rpm |
| Screw Size | : | 5/16-18 |
| Series | : | CJ Series |
| Type | : | Style A |
- Three-piece design that is easy to assemble
- The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider)
- Hubs are offered in sintered iron, steel, aluminum, cast iron and nodular iron materials
- No metal to metal contact and no lubrication required
- Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)
- The CJ series covers a torque range of 67 to 247800 in-lb
