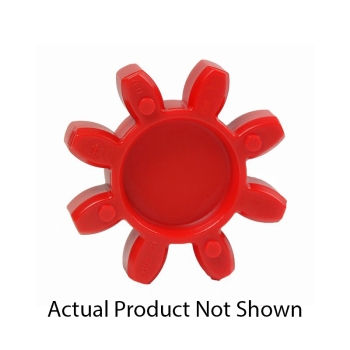

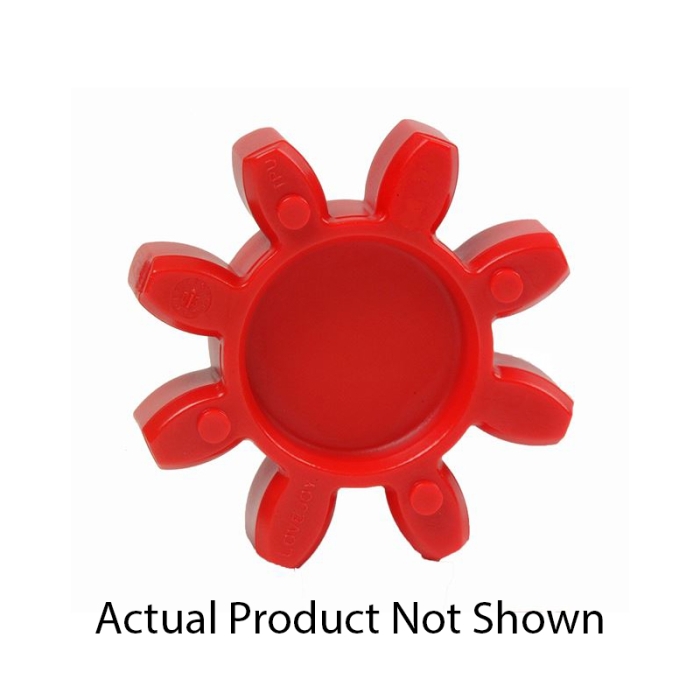

Lovejoy® 68514467253 LOV68514467253

The GS Series spider features a straight center of the spider tooth, providing higher stiffness due to coupling prestress. The crowning of the ends of the spider legs allows for misalignment, while the curved jaws and solid spider center provide high-speed capability. The jaws of the hubs and the spider legs are chamfered to provide easy assembly. The GS Series coupling design also allows the blind assembly in tight spaces. Raised spider dots on the legs of the spider ensure proper spacing of hubs and spider.

Lovejoy® Elastomeric Spider, Solid Center, Series: GS Series, For Use With: GS Series Curved Jaw Coupling, Specifications: Size 24, 98 Shore A, 212 deg F, Urethane, Red, 2.16 in Dia x 0.550 in THK

• Urethane spiders provide high abrasion resistance and elasticity, along with good damping characteristics
• The spiders are offered in a variety of shore hard nesses, each providing a different level of torque capacity, damping and chemical resistance
• The 95/98A shore spider (red) offers higher torque than the standard 92 shore, but retains greater damping capacity compared to the 64D shore insert (green)
• The standard curved jaw spider design has a hole in the center to accommodate small between shaft end measurements
• The curved jaw spider's urethane material also resists oil, dirt, sand, grease, moisture, many solvents, as well as atmospheric effects of ozone

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514467253_Specification_Sheet.pdf
