Lovejoy® 68514456638 LOV68514456638

The beam flexible Coupling is formed from one-piece of aluminum rod. A spiral slot is cut through the length of the aluminum tube forming a "spring" center section referred to as a helical coil or beam. The flexure allowed by the beam portion of the Coupling is capable of accommodating angular, parallel and axial misalignment while continuing to convey power between the attached shafts. This results in a single-piece, true flexible Coupling. The miniature beam Coupling is designed for very light power transmission applications where accurate positioning of shafts is an essential requirement. It also has a very high tolerance to heat, chemicals and corrosion that would be harmful to conventional elastomeric flexible Couplings. The miniature beam Coupling design is very well suited for small shaft applications and the inherent requirements of start/stop/reverse applications where zero backlash and extreme positioning accuracy are important. This Coupling operates either clockwise or counter clockwise without sacrificing windup or torque capabilities.

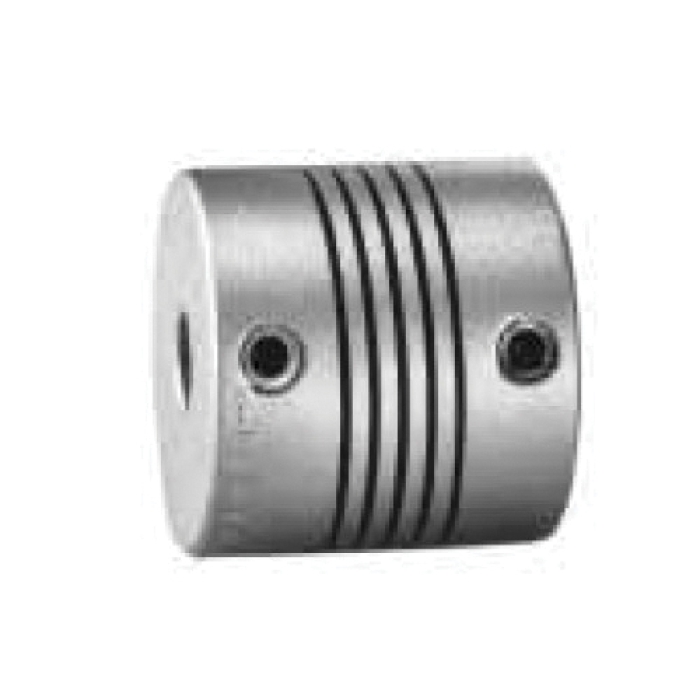

Lovejoy® Coupling, Single Beam Setscrew Style, Series: ES Series, 3/8 in Bore, 0.984 in OD, 0.984 in Overall Length, 0.276 in Length Through Bore, 11 in-lb Torque, 10000 rpm Maximum, 200 deg F, Anodized Aluminum

• All metal Coupling
• Easy to install - one-piece
• High angular misalignment capability to 5 deg
• Zero backlash design
• Without keyway

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514456618_Catalog.pdf
