Lovejoy® 68514419917 LOV48/56LB
Lovejoy® 68514419917 Sliding Dovetail Adjustable Motor Base, NEMA 48/56 Frame Variable Speed Drive Motor, Steel, 11 in L x 6-1/4 in D x 4-1/2 in H, Domestic
- Manufacturer: Lovejoy
- Brand Name: Lovejoy®
- Part Number: LOV48/56LB
- MPN: 68514419917
- UPC: 685144199171
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
These are the most compact, lowest-priced sliding motor bases offered by Lovejoy®. The model 48/56 LA comes with a convenient hexagon head adjusting screw for use with your adjustable or socket wrench for fast speed change and has a profile height of only 1-1/2 in. The model 48/56 LB is equipped with a hand wheel and riser blocks that make tool-free adjustment quick and easy.
Lovejoy® Adjustable Motor Base, Sliding Dovetail, Variable Speed Drive Motor, NEMA 48/56 Frame Motor, Steel, 11 in L x 6-1/4 in D x 4-1/2 in H Dimensions, Domestic
| Dimensions | : | 11 in L x 6-1/4 in D x 4-1/2 in H |
| Domestic/Import | : | Domestic |
| Material | : | Steel |
| Motor Size | : | NEMA 48/56 Frame |
| Motor Type | : | Variable Speed Drive |
| Type | : | Sliding Dovetail |
- Easy motor mounting and speed adjustment due to the one-piece top plate, which is slotted for NEMA 48 and 56 motor frames
- So cost efficient they can be used as belt tensioning bases
- Tough steel construction makes them exceptionally durable

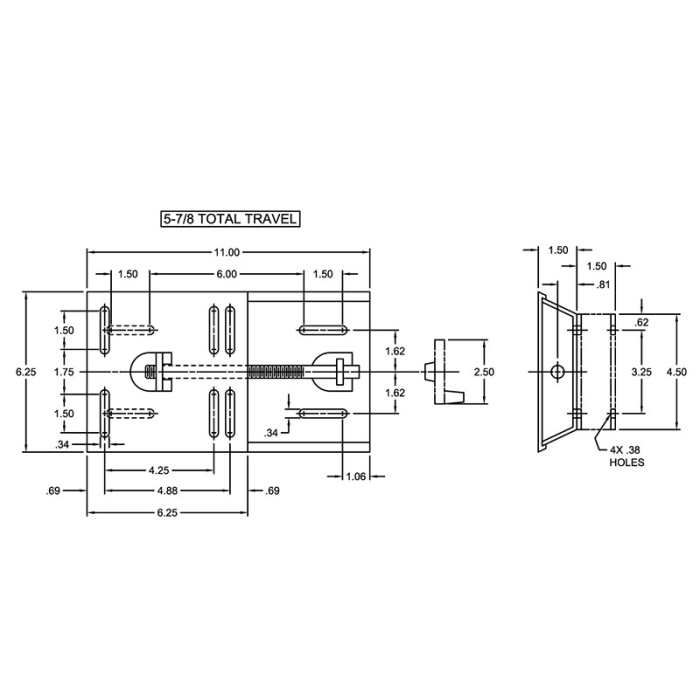

Specification Sheet
