Lovejoy® 68514417306 LOVLOJ8B

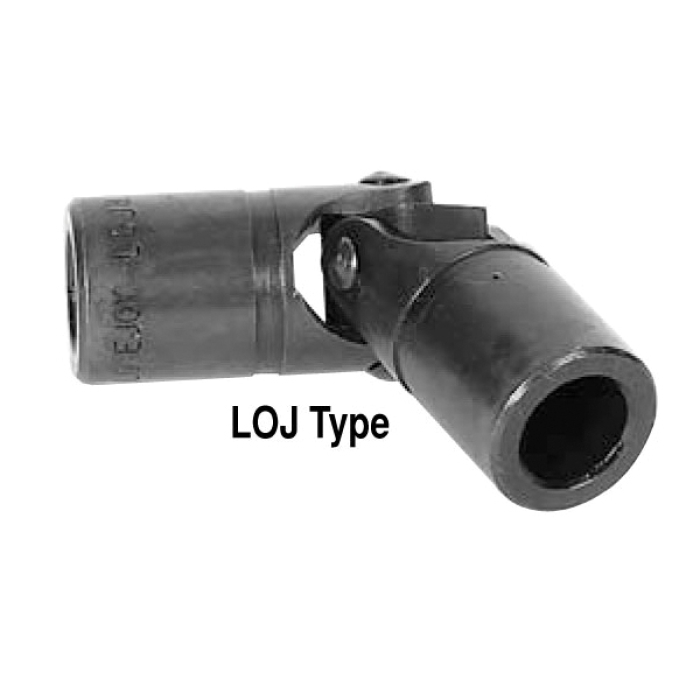

Lovejoy® 68514417306 Type LOJ Finished Bore Pin and Block Universal Joint, LOJ8B, 0.625 in Dia x 0.91 in D Bore, 1750 rpm Max, Steel
- Manufacturer: Lovejoy
- Brand Name: Lovejoy®
- Part Number: LOVLOJ8B
- MPN: 68514417306
- UPC: 685144173065
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Lovejoy® has been manufacturing industrial Universal Joints for over 45 years. Our industrial Universal Joint product line is well established and provides you with a wide range of standard and specialized products. The shape of the yoke is a special feature which results in exceptionally high strength, yet allows full, free movement of the joint. This accounts for the high horsepower capacity at high speeds.
Lovejoy® Universal Joint, Type LOJ Finished Bore Pin and Block, LOJ8B Size, 0.625 in Dia x 0.91 in D Bore, 1 in Diameter Joint, 1500 in-lb Static Torque, 1750 rpm Maximum, 3.68 in Overall Length, 1.69 in Pin Height, 45 deg Maximum Misalignment Angle, Steel, Metallic
| Bore Size | : | 0.625 in Dia x 0.91 in D |
| Finish | : | Metallic |
| Joint Diameter | : | 1 in |
| Material | : | Steel |
| Maximum Misalignment Angle | : | 45 deg |
| Maximum Speed | : | 1750 rpm |
| Overall Length | : | 3.68 in |
| Pin Height | : | 1.69 in |
| Size | : | LOJ8B |
| Torque Rating | : | 1500 in-lb Static |
| Type | : | Type LOJ Finished Bore Pin and Block |
- Offset pin design ideal for use on hand operated, low torque drives
- Capable for operating angles up to 45 deg of angular misalignment
- Without keyway and setscrew
