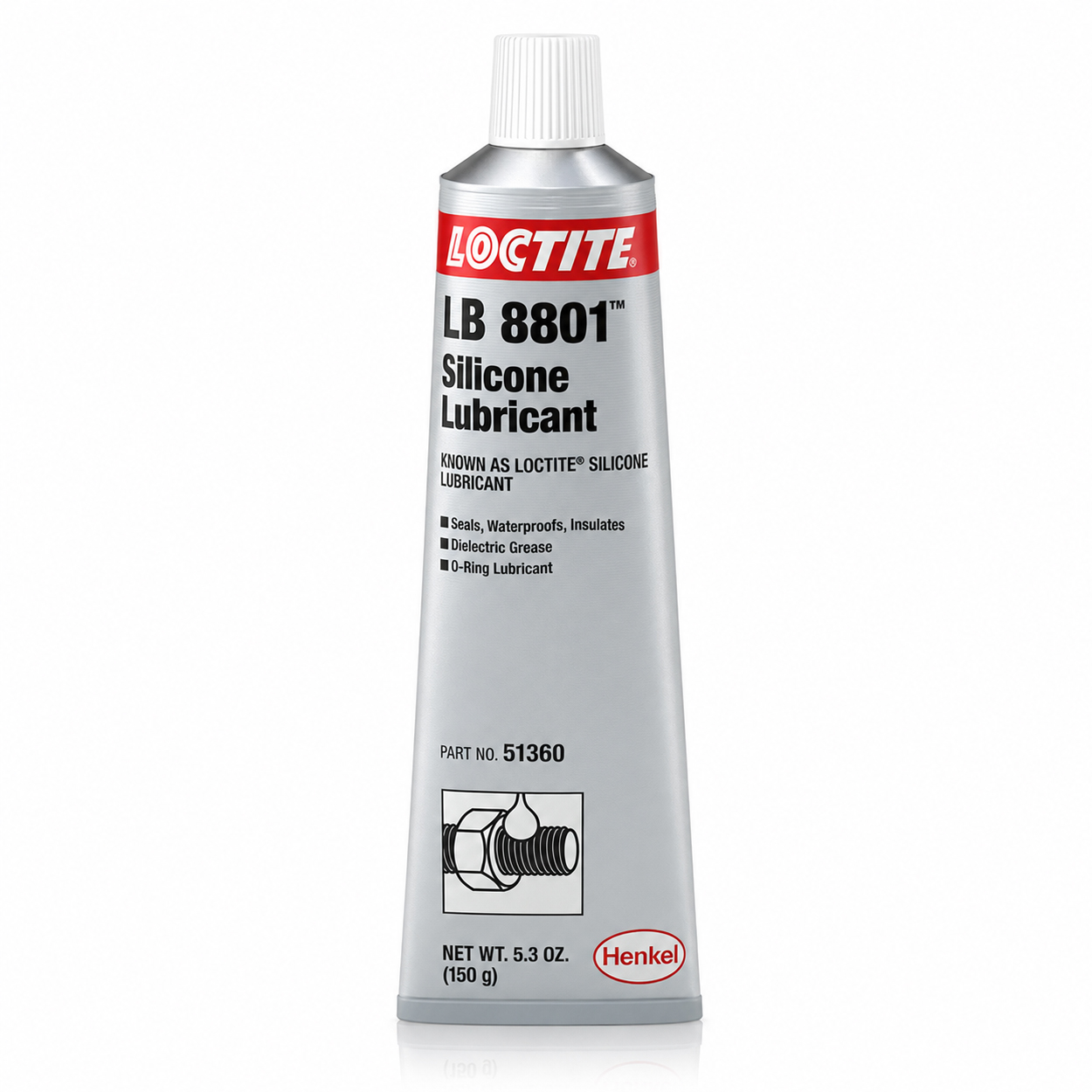

Loctite® 234317 LOC234317
LOCTITE LB 8801 (IDH 234317 / 51360) is a non-curing silicone dielectric grease in a 5.3 oz tube for lubricating, sealing, waterproofing and electrically insulating metal, rubber and plastic parts. Ideal for valves, O-rings, electrical contacts and general industr
- Manufacturer: Henkel
- Brand Name: Loctite®
- Part Number: LOC234317
- Alt Part Number: 51360
- MPN: 234317
- UPC: 079340513600
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
LOCTITE LB 8801 is a non-curing, silicone-based dielectric grease designed for industrial lubrication, sealing, moisture protection and electrical insulation. Henkel IDH 234317 is supplied in a 5.3 oz tube and is also identified by Loctite item number 51360. LB 8801 can be used on metal, rubber and plastic parts and is suitable for applications including O-rings, stopcocks, plug valves, ball valves, valve stem packing, shafts and electrical contacts. The silicone grease provides a moisture barrier and helps protect electrical connections from water infiltration, arcing and moisture-related conductive films. The lubricant resists water and water-based fluids, alcohols, mineral oils and vegetable oils. It is non-curing and water resistant, making it useful for industrial maintenance applications where long-lasting lubrication, sealing and moisture protection are required. Manufacturer technical data also specifies a dielectric strength of 22.8 kV/mm per IEC 60243-1. LOCTITE LB 8801 has an unworked penetration of 250–400 (1/10 mm) per ISO 2137. Refer to the current Henkel Technical Data Sheet and Safety Data Sheet for complete application, handling and safety information.
- Product: LOCTITE LB 8801
- IDH / MPN: 234317
- Loctite Item Number: 51360
- Package: 5.3 oz tube
- Technology: Silicone grease
- Cure: Non-curing
- Physical Form: Grease
- Materials: Metal, rubber, plastic
- Water Resistance: Yes
- Fluid Resistance: Water-based fluids, alcohols, mineral oils and vegetable oils
- Dielectric Strength: 22.8 kV/mm
- Dielectric Constant / Dissipation Factor @ 1 kHz: 2.33 / 0.0045
- Dielectric Constant / Dissipation Factor @ 1 MHz: 2.37 / 0.001
- Unworked Penetration: 250–400 (1/10 mm)
- Relative Density: 0.95
- Flash Point: >93°C / >199.4°F
- Vapor Pressure: <5 mm Hg @ 80°F
- Water Solubility: Insoluble
| Base Type | : | Silicone |
| Color | : | Opaque |
| Composition | : | Silicone Resin |
| Container Size | : | 5.3 oz |
| Container Type | : | Tube |
| Flash Point | : | >93 deg C |
| Form | : | Liquid |
| Odor/Scent | : | Odorless |
| Series | : | lb 8801™ |
| Specific Gravity | : | 0.95 |
| Temperature Range | : | 400 deg F |
| Type | : | Multi-Purpose |
| VOC Content | : | 0 |
- Multi-purpose lubricant stops sticking, friction, squeaking and binding of moving parts
- Will not mar paint, rubber or plastic surfaces
- Waterproofs and electrically insulates
- Non-gumming
- <5 mm Hg vapor pressure
- Insoluble in water
- For most metals, plastic, rubber
- Resists oil, moisture and water
