Link-Belt® 10479823 REXEFB215T

Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.

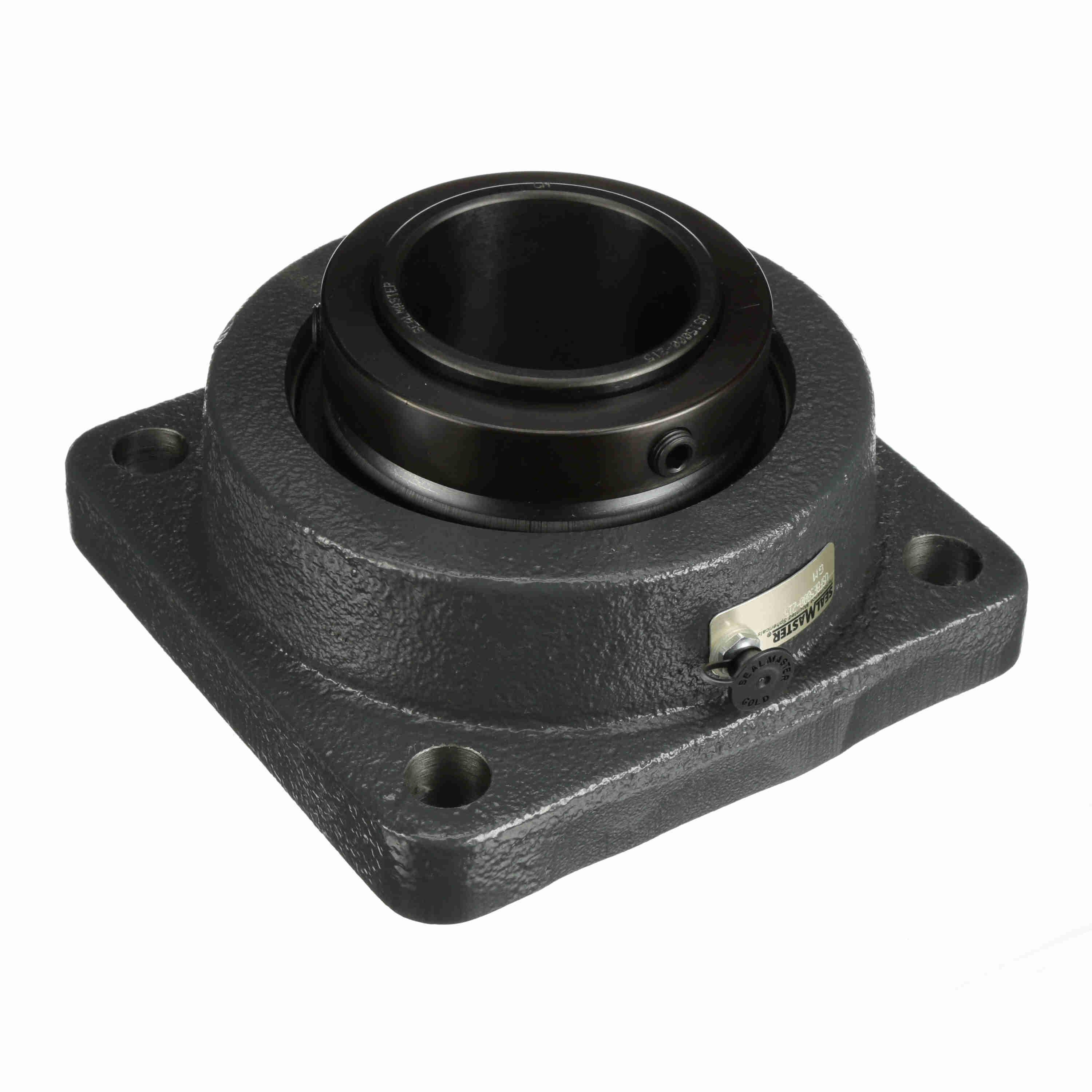

Link-Belt® Flanged Block Spherical Roller Bearing, Expansion, Series: EFB, 2-15/16 in Bore, 6 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 7-3/4 in Overall Length/Diameter, 4.74 in Overall Depth, 7-3/4 in Overall Height, Single Set Screw Collar Locking Device, Cast Iron Bearing, 41000 lb Dynamic/43870 lb Static Load, 2090 rpm Maximum, -40 to 250 deg F, Powder Coated

• Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
• Double contoured retainer pockets
• Factory set clearance and lubrication
• Extended inner ring, separable outer rings
• Type E spring loaded lip seals utilize a spring to provide uniform pressure for keeping the sealing lip in contact with the inner ring
• Triple lip seal
• Exxon Ronex™ MP grease

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_EFB107C_Manual.pdf
