Link-Belt® 10475437 LNKMU5208X

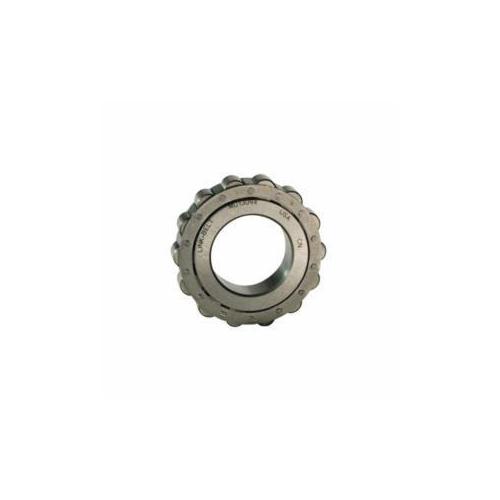

Link-Belt® 10475437 M5200 Light Cylindrical Roller Bearing, 40 mm Dia Bore, 80 mm OD, 1 Rows, 30.16 mm W, 86100 N Dynamic/105000 N Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKMU5208X
- Alt Part Number: MU5208X
- MPN: 10475437
- UPC: 662327058999
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Link-Belt® cylindrical roller bearings offer a broad range of configuration options and features to ensure you get the best value on delivery and performance. Utilizing case-carburizing, bearing quality steel and complex geometries, our bearings are designed to consistently perform in demanding applications, and our broad product range includes a bearing for any application. Plus, we offer dedicated engineering support to help customize units to your specifications.
Link-Belt® Cylindrical Roller Bearing, Light, Series: M5200, 40 mm Bore Dia, 80 mm Outside Dia, 1 Rows, 30.16 mm Width, 86100 N Dynamic/105000 N Static Load, Chrome Steel Bearing, Segmented Steel Cage, -40 to 275 deg F
| Bearing Material | : | Chrome Steel |
| Bore Diameter | : | 40 mm |
| Cage Material | : | Segmented Steel |
| Load Capacity | : | 86100 N Dynamic/105000 N Static |
| Number of Rows | : | 1 |
| Outside Diameter | : | 80 mm |
| Series | : | M5200 |
| Temperature Rating | : | -40 to 275 deg F |
| Type | : | Light |
| Width | : | 30.16 mm |
- Wide width
- Double rib inner ring
- Standard capacity
- Fully crowned rollers
- Precision ground ribs
- Rollers individually separated
- High and low-volume manufacturing capabilities
- Super-finished raceways for smooth operation
- Broad standard product range
- 5208 bearing number
- Bearings with the outer ring omitted may be installed so that the rollers operate directly on the hardened and ground surface of a bore in an alloy steel housing
Instruction/Installation Manual
