Link-Belt® 10474002 LNKM5234TV

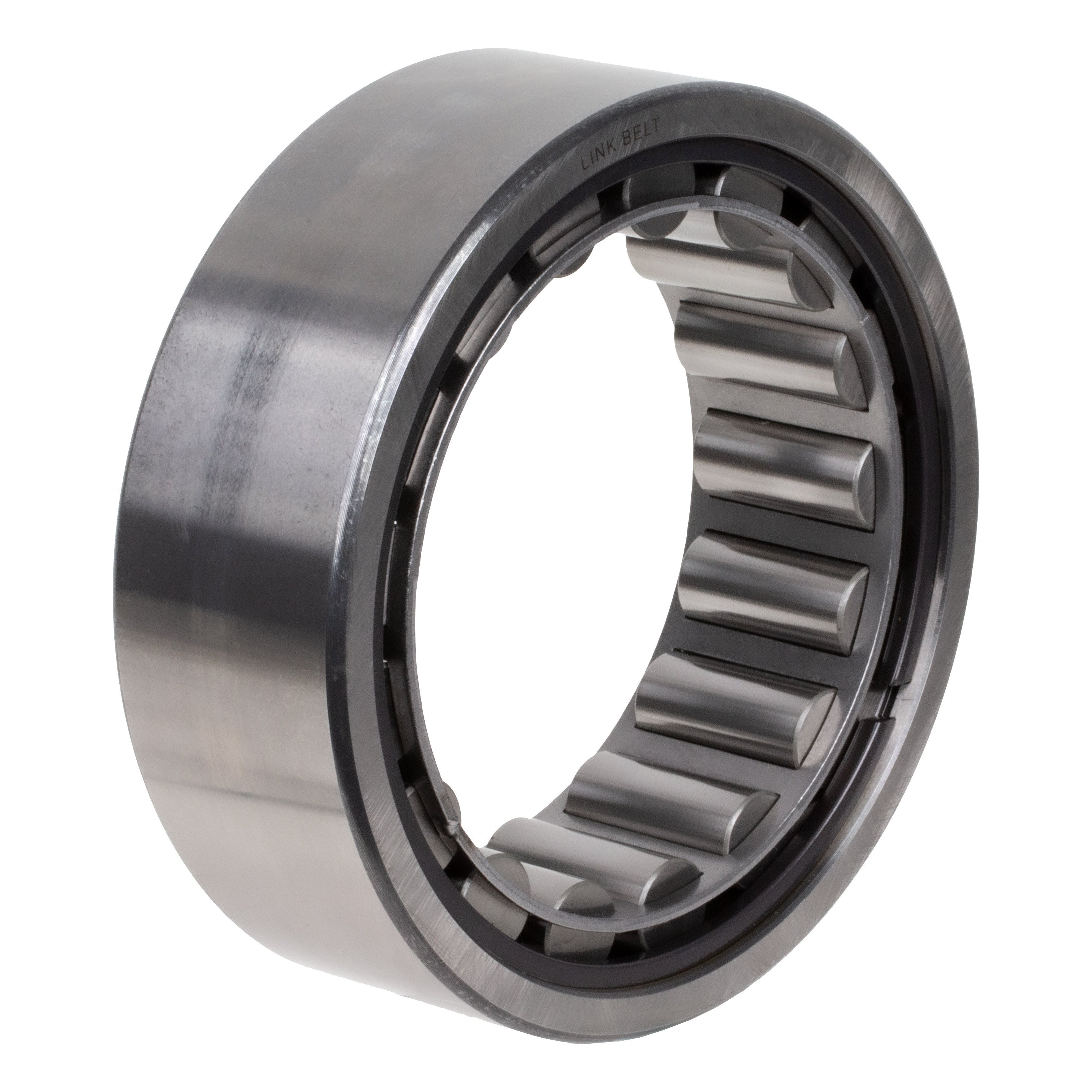

Link-Belt® 10474002 M5200 Light Cylindrical Roller Bearing, 170 mm Dia Bore, 310 mm OD, 1 Row, 104.775 mm W, 1150000 N Dynamic/1840000 N Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKM5234TV
- Alt Part Number: M5234TV
- MPN: 10474002
- UPC: 662327108359
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Link-Belt® cylindrical roller bearings offer a broad range of configuration options and features to ensure you get the best value on delivery and performance. Utilizing case-carburizing, bearing quality steel and complex geometries, our bearings are designed to consistently perform in demanding applications, and our broad product range includes a bearing for any application. Plus, we offer dedicated engineering support to help customize units to your specifications.
Link-Belt® Cylindrical Roller Bearing, Light, Series: M5200, 170 mm Bore Dia, 310 mm Outside Dia, 1 Row, 104.775 mm W, Open Closure, 1150000 N Dynamic/1840000 N Static, Chrome Steel Bearing, Formed Steel Cage, -40 to 275 deg F
| Bearing Material | : | Chrome Steel |
| Bore Diameter | : | 170 mm |
| Cage Material | : | Formed Steel |
| Closure Type | : | Open |
| Load Capacity | : | 1150000 N Dynamic/1840000 N Static |
| Number of Rows | : | 1 |
| Outside Diameter | : | 310 mm |
| Series | : | M5200 |
| Temperature Rating | : | -40 to 275 deg F |
| Type | : | Light |
| Width | : | 104.775 mm |
- Contact Rexnord for more details
