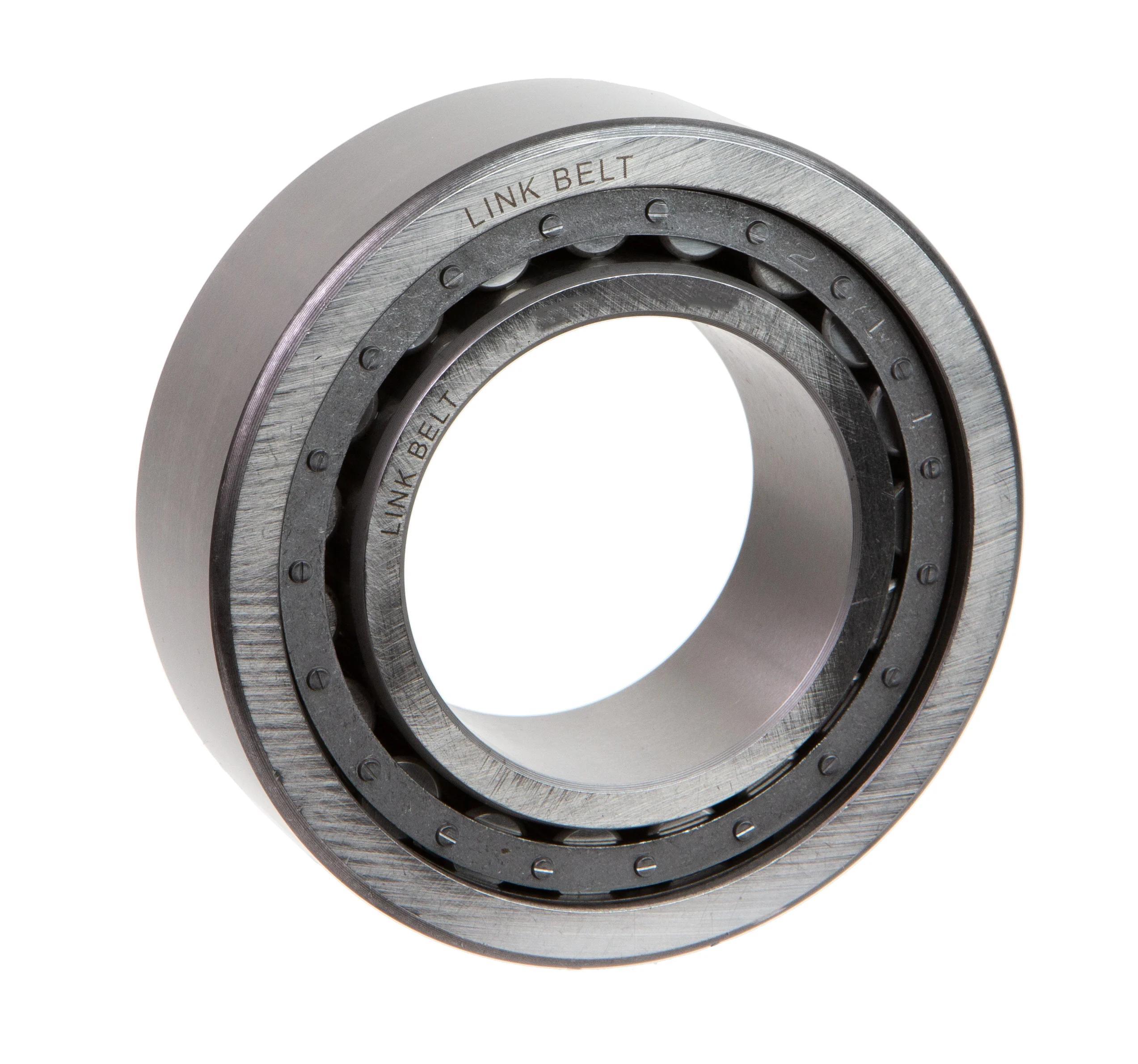

Link-Belt® 10471369 LNKMR1213EAX
Link-Belt® 10471369 M1200 Light Unmounted Cylindrical Roller Bearing, 65 mm Dia Bore, 120 mm OD, 1 Rows, 23 mm W, 95100 N Dynamic/115000 N Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKMR1213EAX
- Alt Part Number: MR1213EAX
- MPN: 10471369
- UPC: 662327709167
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Link-Belt® cylindrical roller bearings offer a broad range of configuration options and features to ensure you get the best value on delivery and performance. Utilizing case-carburizing, bearing quality steel and complex geometries, our bearings are designed to consistently perform in demanding applications, and our broad product range includes a bearing for any application. Plus, we offer dedicated engineering support to help customize units to your specifications.
Link-Belt® Cylindrical Roller Bearing, Light Unmounted, Series: M1200, 65 mm Bore Dia, 120 mm Outside Dia, 1 Rows, 23 mm Width, 95100 N Dynamic/115000 N Static Load, Chrome Steel Bearing, Segmented Steel Cage, -40 to 275 deg F
| Bearing Material | : | Chrome Steel |
| Bore Diameter | : | 65 mm |
| Cage Material | : | Segmented Steel |
| Load Capacity | : | 95100 N Dynamic/115000 N Static |
| Number of Rows | : | 1 |
| Outside Diameter | : | 120 mm |
| Series | : | M1200 |
| Temperature Rating | : | -40 to 275 deg F |
| Type | : | Light Unmounted |
| Width | : | 23 mm |
- Narrow width
- Single rib inner ring
- Standard capacity
- Double rib outer ring
- Oversize OD outer ring
- Segmented retainer
- Fully crowned rollers
- Precision ground ribs
- Rollers individually separated
- Segmented steel retainer
- High and low-volume manufacturing capabilities
- Super-finished raceways for smooth operation
- Broad standard product range
- 1213 bearing number
