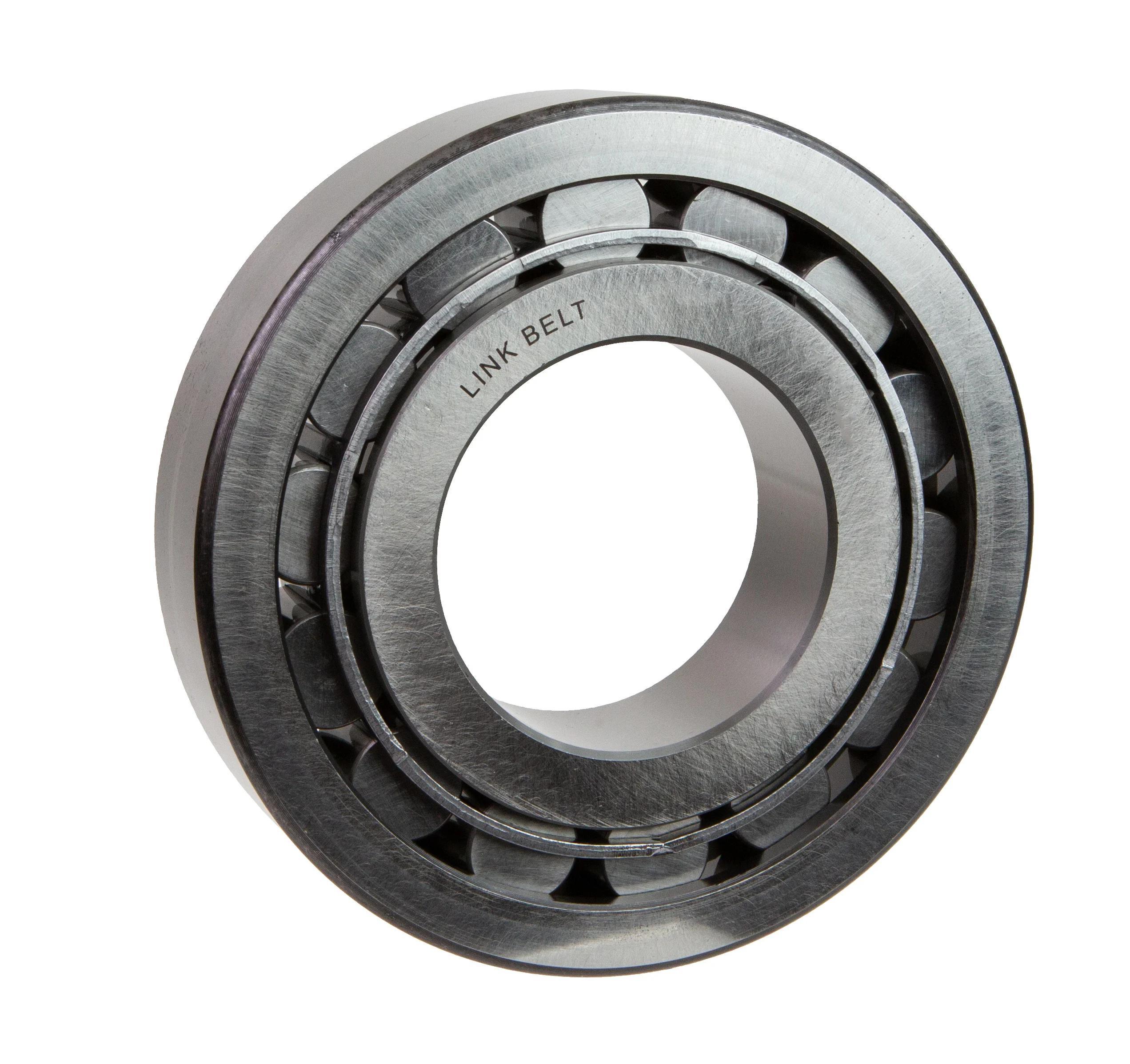

Link-Belt® 10470823 LNKMU5211UV
Link-Belt® 10470823 5200 Light Wide Width Cylindrical Roller Bearing, 55 mm Dia Bore, 100 mm OD, 1 Row, 33.338 mm W
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKMU5211UV
- Alt Part Number: MU5211UV
- MPN: 10470823
- UPC: 662327059095
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Metric series cylindrical roller bearings are manufactured to ABMA boundary dimensions. These bearings require minimum space and provide maximum rated capacity. Various configurations including separable inner or outer ring combinations offer ample application flexibility.
Link-Belt® Cylindrical Roller Bearing, Wide Width, Series: 5200 Light, 55 mm Bore Dia, 100 mm Outside Dia, 1 Row, 33.338 mm W, Open Closure, Steel Cage
| Bore Diameter | : | 55 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Number of Rows | : | 1 |
| Outside Diameter | : | 100 mm |
| Series | : | 5200 Light |
| Type | : | Wide Width |
| Width | : | 33.338 mm |
- High quality rings
- Micro finished raceways assure smooth operations
- Optimized raceway contact area
- Positive roller spacing
- Fully crowned roller
- Precision ground rib
- Contoured roller pockets
- Rollers individually separated
- Single rib outer ring, one retaining ring in inside diameter
- Formed steel retainer
- Double rib inner ring
- Standard capacity
Instruction/Installation Manual
