Link-Belt® 10470816 LNKM1309TV

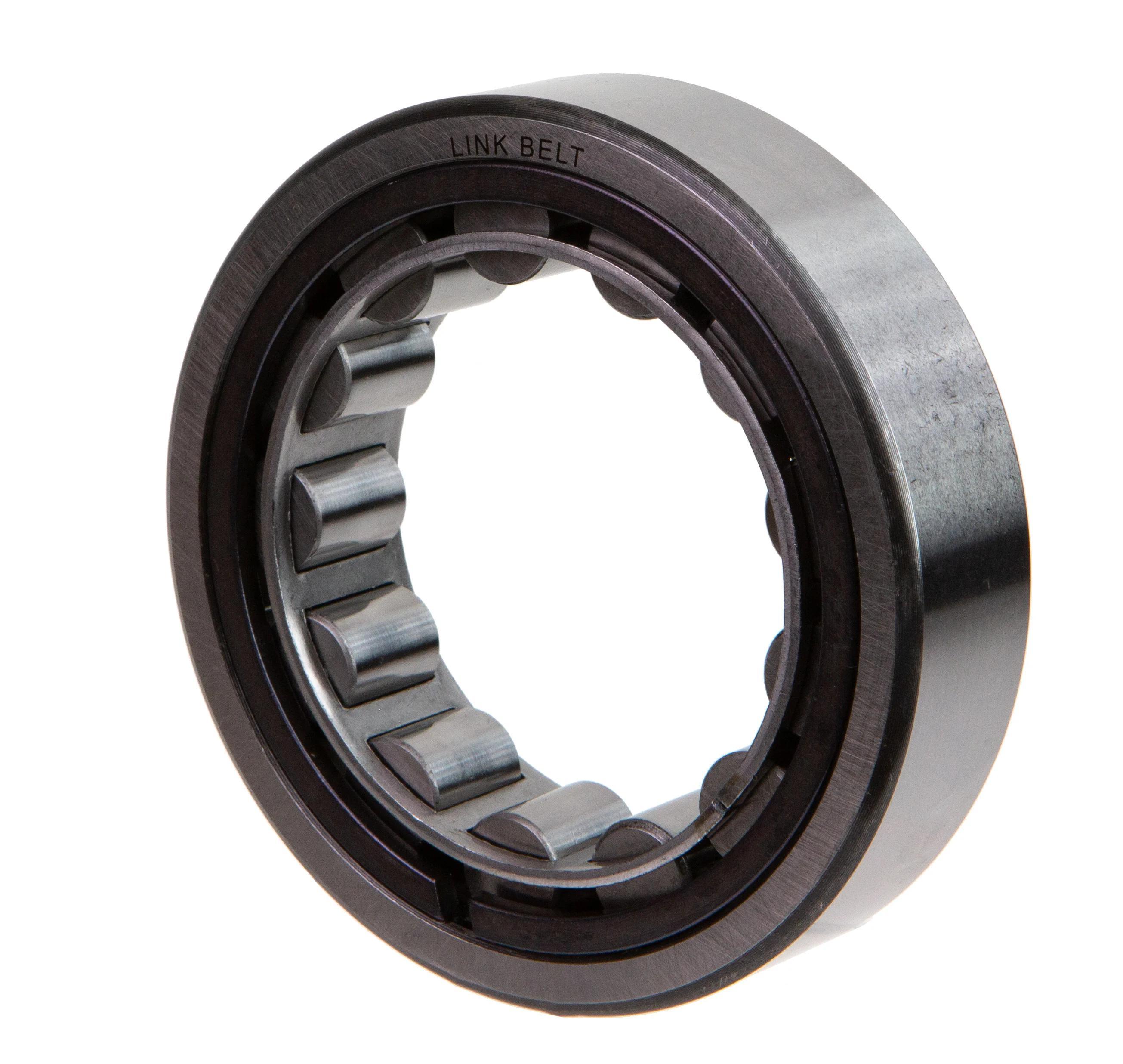

Link-Belt® 10470816 1300 Medium Narrow Width Cylindrical Roller Bearing, 45 mm Dia Bore, 100 mm OD, 1 Row, 25 mm W, 19400 lb Dynamic/20400 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKM1309TV
- Alt Part Number: M1309TV
- MPN: 10470816
- UPC: 662327106980
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Metric series cylindrical roller bearings are manufactured to ABMA boundary dimensions. These bearings require minimum space and provide maximum rated capacity. Various configurations including separable inner or outer ring combinations offer ample application flexibility.
Link-Belt® Cylindrical Roller Bearing, Narrow Width, Series: 1300 Medium, 45 mm Bore Dia, 100 mm Outside Dia, 1 Row, 25 mm W, Open Closure, 19400 lb Dynamic/20400 lb Static, Chrome Steel Bearing, Steel Cage, Uncoated
| Bearing Material | : | Chrome Steel |
| Bore Diameter | : | 45 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 19400 lb Dynamic/20400 lb Static |
| Number of Rows | : | 1 |
| Outside Diameter | : | 100 mm |
| Series | : | 1300 Medium |
| Type | : | Narrow Width |
| Width | : | 25 mm |
- High quality rings
- Micro finished raceways assure smooth operations
- Optimized raceway contact area
- Positive roller spacing
- Fully crowned roller
- Precision ground rib
- Contoured roller pockets
- Rollers individually separated
- Outer ring with two retaining rings in inside diameter
- Formed steel retainer
- Standard capacity
- Without Inner Ring
