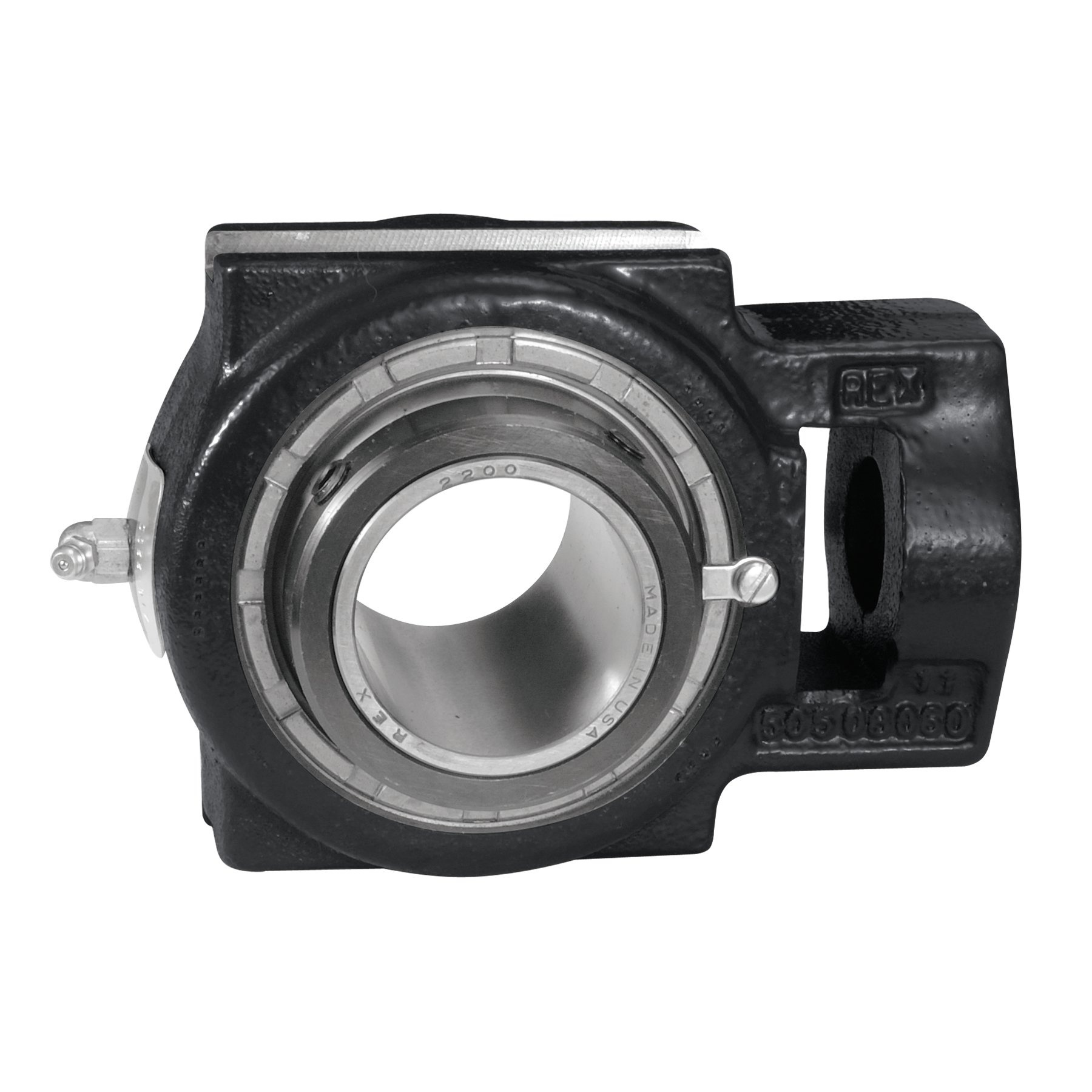

Link-Belt® 10440175 LNKTB22436H
Link-Belt® 10440175 B22400 Fixed Slotted Guide Take-Up Spherical Roller Bearing Unit, 2-1/4 in Dia Bore, 7-1/8 in L x 3-5/16 in W x 5-1/4 in H, 32500 lb Dynamic/44400 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKTB22436H
- Alt Part Number: TB22436H
- MPN: 10440175
- UPC: 662327141875
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
Link-Belt® Take-Up Spherical Roller Bearing Unit, Fixed Slotted Guide, Series: B22400, 2-1/4 in Bore Dia, 7-1/8 in Length, 3-5/16 in Width, 5-1/4 in Height, 32500 lb Dynamic/44400 lb Static Load, 225 deg F, Powder Coated
| Bore Diameter | : | 2-1/4 in |
| Finish | : | Powder Coated |
| Height | : | 5-1/4 in |
| Length | : | 7-1/8 in |
| Load Capacity | : | 32500 lb Dynamic/44400 lb Static |
| Series | : | B22400 |
| Temperature Rating | : | 225 deg F |
| Type | : | Fixed Slotted Guide |
| Width | : | 3-5/16 in |
- 2 1/4 in Mounted Spherical Roller Bearing, Fixed Cast Iron 2-Bolt Take Up Block, Single Setscrew Locking Collar, Clearance Seal
