Link-Belt® 10439529 LNKFX3S218E

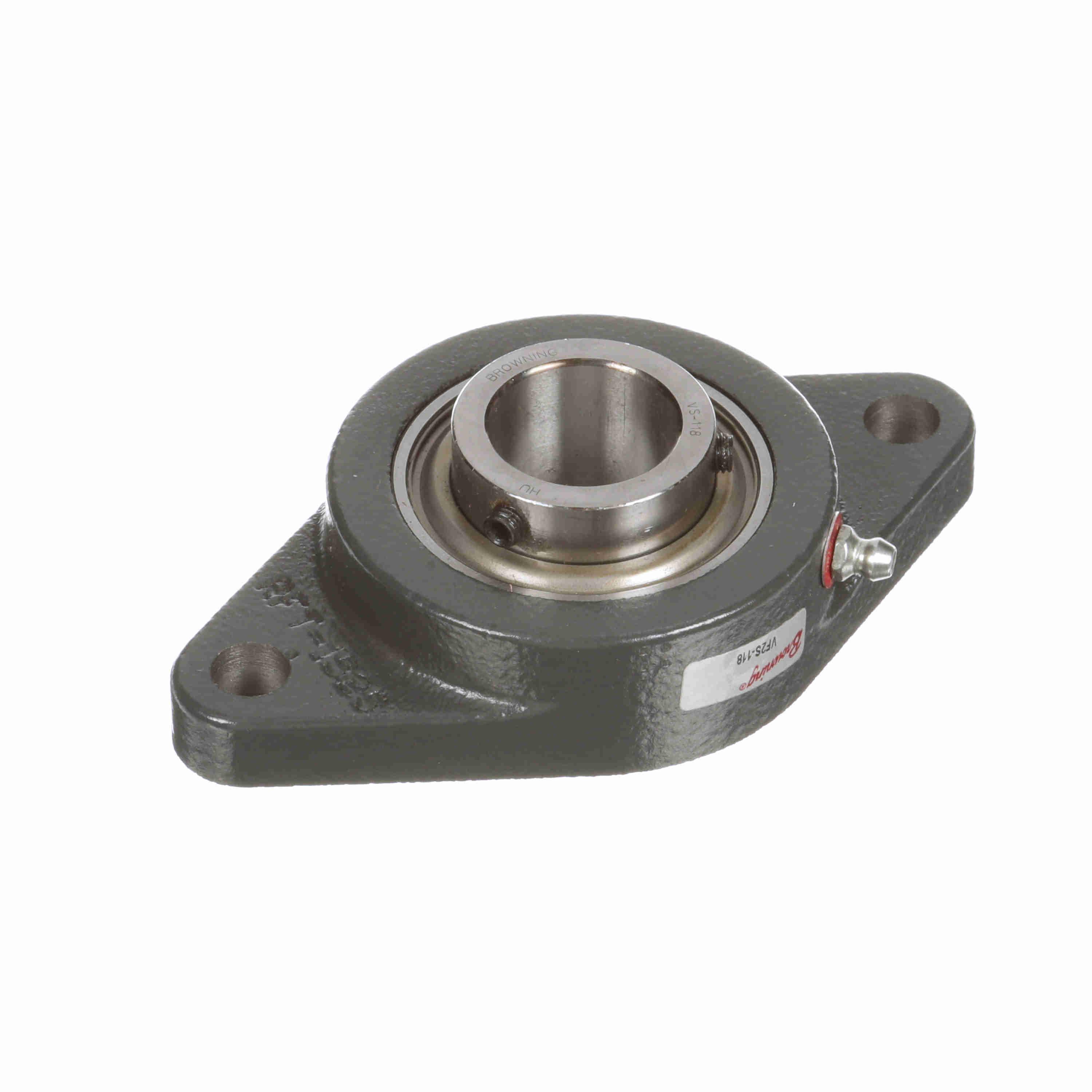

Link-Belt® 10439529 200 Intermediate Duty Flange Block Ball Bearing, 1-1/8 in Dia Bore, 4-19/32 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-3/16 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKFX3S218E
- Alt Part Number: FX3S218E
- MPN: 10439529
- UPC: 662327033965
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Intermediate Duty, Series: 200, 1-1/8 in Bore, 4-19/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/16 in Overall Length/Diameter, 1-1/2 in Overall Depth, 5-9/16 in Overall Height, Set Screw Locking Device, Alloy Steel Bearing, 4390 lb Dynamic/2530 lb Static Load, 5600 rpm Maximum, 225 deg F, Powder Coated
| Bearing Material | : | Alloy Steel |
| Bolt Center-to-Center Length | : | 4-19/32 in |
| Bore Diameter | : | 1-1/8 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 2-Bolt |
| Load Capacity | : | 4390 lb Dynamic/2530 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 5600 rpm |
| Overall Depth | : | 1-1/2 in |
| Overall Height | : | 5-9/16 in |
| Overall Length/Diameter | : | 3-3/16 in |
| Series | : | 200 |
| Temperature Rating | : | 225 deg F |
| Type | : | Intermediate Duty |
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Narrow inner ring
- Cast iron housing
- Single lip contact seal
