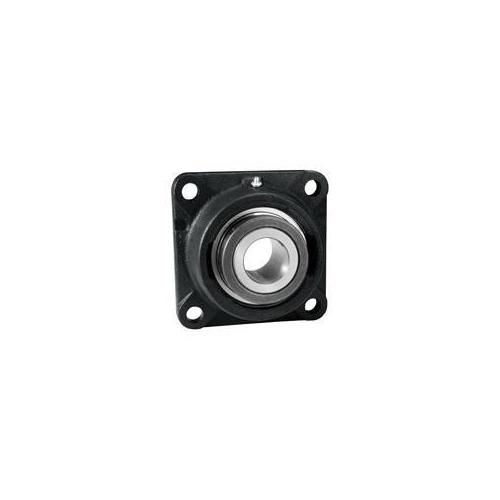

Link-Belt® 10439517 LNKFU335
Link-Belt® 10439517 300 Fixed Heavy Duty Flange Block Ball Bearing, 2-3/16 in Dia Bore, 5-3/4 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 7-5/16 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKFU335
- Alt Part Number: FU335
- MPN: 10439517
- UPC: 662327708573
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.
Link-Belt® Flange Block Ball Bearing, Fixed Heavy Duty, Series: 300, 2-3/16 in Bore, 5-3/4 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 7-5/16 in Overall Length/Diameter, 3-7/32 in Overall Depth, 7-5/16 in Overall Height, Set Screw Locking Device, 16070 lb Dynamic/10000 lb Static Load, 4950 rpm Maximum, 225 deg F, Powder Coated
| Bolt Center-to-Center Length | : | 5-3/4 in |
| Bore Diameter | : | 2-3/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Load Capacity | : | 16070 lb Dynamic/10000 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 4950 rpm |
| Overall Depth | : | 3-7/32 in |
| Overall Height | : | 7-5/16 in |
| Overall Length/Diameter | : | 7-5/16 in |
| Series | : | 300 |
| Temperature Rating | : | 225 deg F |
| Type | : | Fixed Heavy Duty |
- Steel clad clearance seal
- Alignable and relubricatable
- Compact, 1-piece cast iron housings provide strength with minimum size and weight and excellent rigidity
