Link-Belt® 10438342 LNKPL3S247E

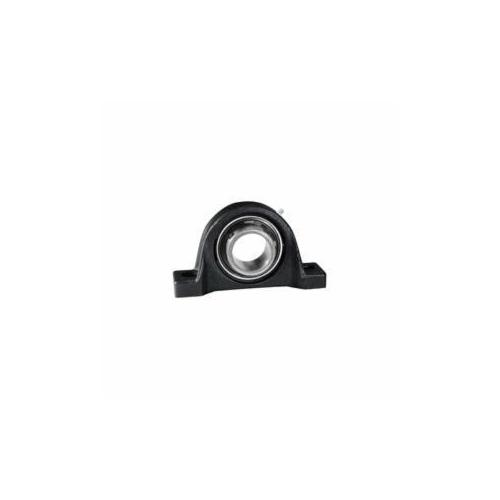

Link-Belt® 10438342 200 Intermediate Duty Pillow Block Ball Bearing Unit, 2-15/16 in Dia Bore, 8-7/8 in L Bolt Center-to-Center, 3-5/16 in Base to Bore Centerline, 12 in OAL x 6-15/32 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKPL3S247E
  • MPN: 10438342
  • UPC: 662864715546
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.

Link-Belt® Pillow Block Ball Bearing Unit, Intermediate Duty, Series: 200, 2-15/16 in Bore, 8-7/8 in Bolt Center-to-Center Length, 3-5/16 in Base to Bore Centerline, 12 in Overall Length, 2-17/64 in Overall Width, 6-15/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-7/8 in Base Width, Set Screw Locking Device, Single Lip Seal, 13900 lb Dynamic/8460 lb Static Load, 225 deg F, 2900 rpm Maximum, Cast Iron, Powder Coated

Base Width      :      2-7/8 in
Base to Bore Centerline      :      3-5/16 in
Bolt Center-to-Center Length      :      8-7/8 in
Bore Diameter      :      2-15/16 in
Bore Type      :      Round
Finish      :      Powder Coated
Load Capacity      :      13900 lb Dynamic/8460 lb Static
Locking Device      :      Set Screw
Material      :      Cast Iron
Maximum Speed      :      2900 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      6-15/32 in
Overall Length      :      12 in
Overall Width      :      2-17/64 in
Seal Type      :      Single Lip
Series      :      200
Temperature Rating      :      225 deg F
Type      :      Intermediate Duty
  • Alignable precision deep groove ball bearing manufactured of quality alloy bearing steel provides high capacity and long life
  • Compact 1-piece housing provides excellent mounting support
  • Relubricatable bearing
  • Low backing height
  • Integral bearing seals
  • Narrow inner ring
  • 215 size code
