Link-Belt® 10437916 LNKFC3Y228N

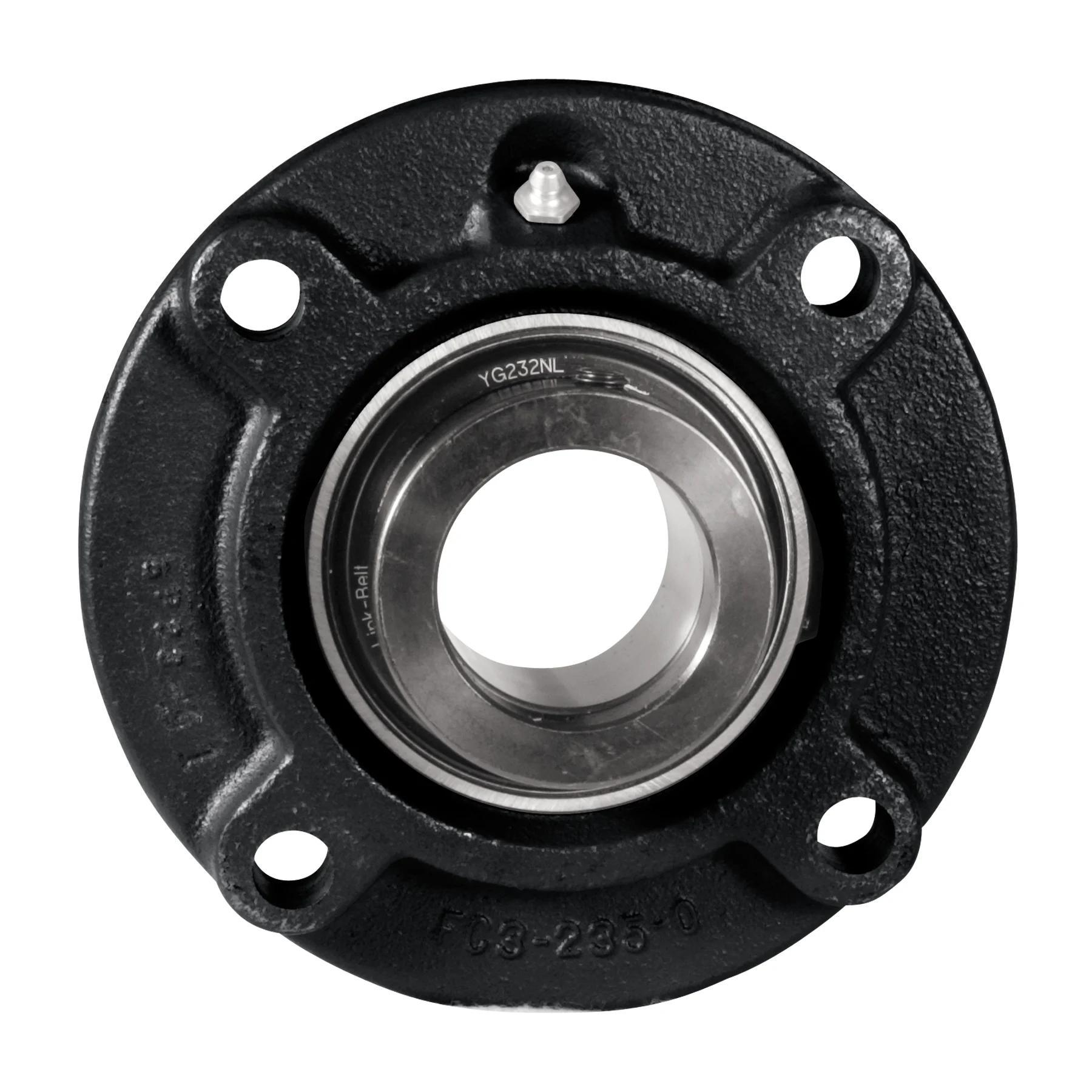

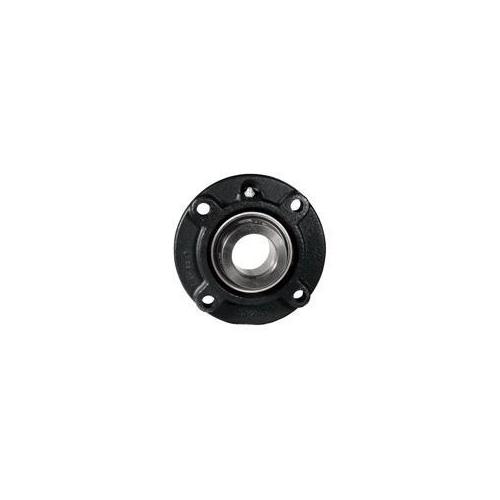

Link-Belt® 10437916 200 Standard Duty Flange Block Ball Bearing, 1-3/4 in Dia Bore, 5-1/8 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 6-1/8 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKFC3Y228N
- Alt Part Number: FC3Y228N
- MPN: 10437916
- UPC: 662327028985
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Standard Duty, Series: 200, 1-3/4 in Bore, 5-1/8 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 6-1/8 in Overall Length/Diameter, 2-11/64 in Overall Depth, Eccentric Cam Collar Locking Device, Alloy Steel Bearing, 7370 lb Dynamic/4590 lb Static Load, 5330 rpm Maximum, 225 deg F, Powder Coated
| Bearing Material | : | Alloy Steel |
| Bolt Circle Diameter | : | 5-1/8 in |
| Bore Diameter | : | 1-3/4 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Load Capacity | : | 7370 lb Dynamic/4590 lb Static |
| Locking Device | : | Eccentric Cam Collar |
| Maximum Speed | : | 5330 rpm |
| Overall Depth | : | 2-11/64 in |
| Overall Length/Diameter | : | 6-1/8 in |
| Series | : | 200 |
| Temperature Rating | : | 225 deg F |
| Type | : | Standard Duty |
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Wide inner ring for increased shaft stability
- Cast iron housing
- Single lip contact seal
