Link-Belt® 10436380 LNKF3U228N
  1. pin-int

Link-Belt® 10436380 LNKF3U228N

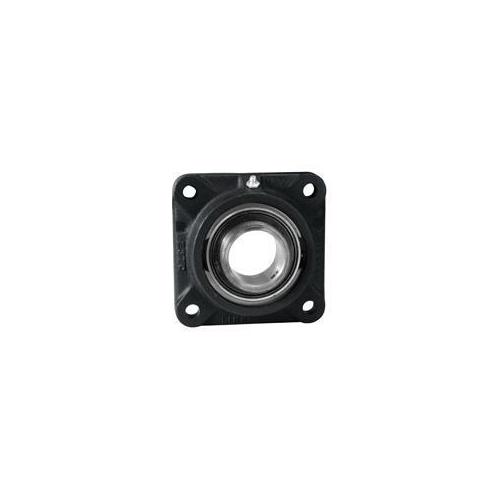

Link-Belt® 10436380 200 Standard-Duty Flange Block Ball Bearing, 1-3/4 in Dia Bore, 4-1/8 in L Bolt Center-to-Center, 5-53/64 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 5-3/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKF3U228N
  • Alt Part Number: F3U228N
  • MPN: 10436380
  • UPC: 662327037086
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.

Link-Belt® Flange Block Ball Bearing, Standard-Duty, Series: 200, 1-3/4 in Bore, 4-1/8 in Bolt Center-to-Center Length, 5-53/64 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5-3/8 in Overall Length/Diameter, 2-9/64 in Overall Depth, 5-3/8 in Overall Height, Set Screw Locking Device, Alloy Steel Bearing, 7370 lb Dynamic/4590 lb Static Load, 5330 rpm Maximum, 225 deg F, Powder Coated

Bearing Material      :      Alloy Steel
Bolt Center-to-Center Length      :      4-1/8 in
Bolt Circle Diameter      :      5-53/64 in
Bore Diameter      :      1-3/4 in
Finish      :      Powder Coated
Flange Mounting Type      :      4-Bolt Square
Load Capacity      :      7370 lb Dynamic/4590 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      5330 rpm
Overall Depth      :      2-9/64 in
Overall Height      :      5-3/8 in
Overall Length/Diameter      :      5-3/8 in
Series      :      200
Temperature Rating      :      225 deg F
Type      :      Standard-Duty
  • Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
  • Compact, 1-piece housing provides excellent mounting support
  • Non-relubricatable bearing
  • Integral bearing seals
  • Wide inner ring for increased shaft stability
  • Cast iron housing
  • Single lip contact seal
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_B440SC_Catalog.pdf
