Link-Belt® 10435466 LNKPLB6847FR
  1. pin-int

Link-Belt® 10435466 LNKPLB6847FR

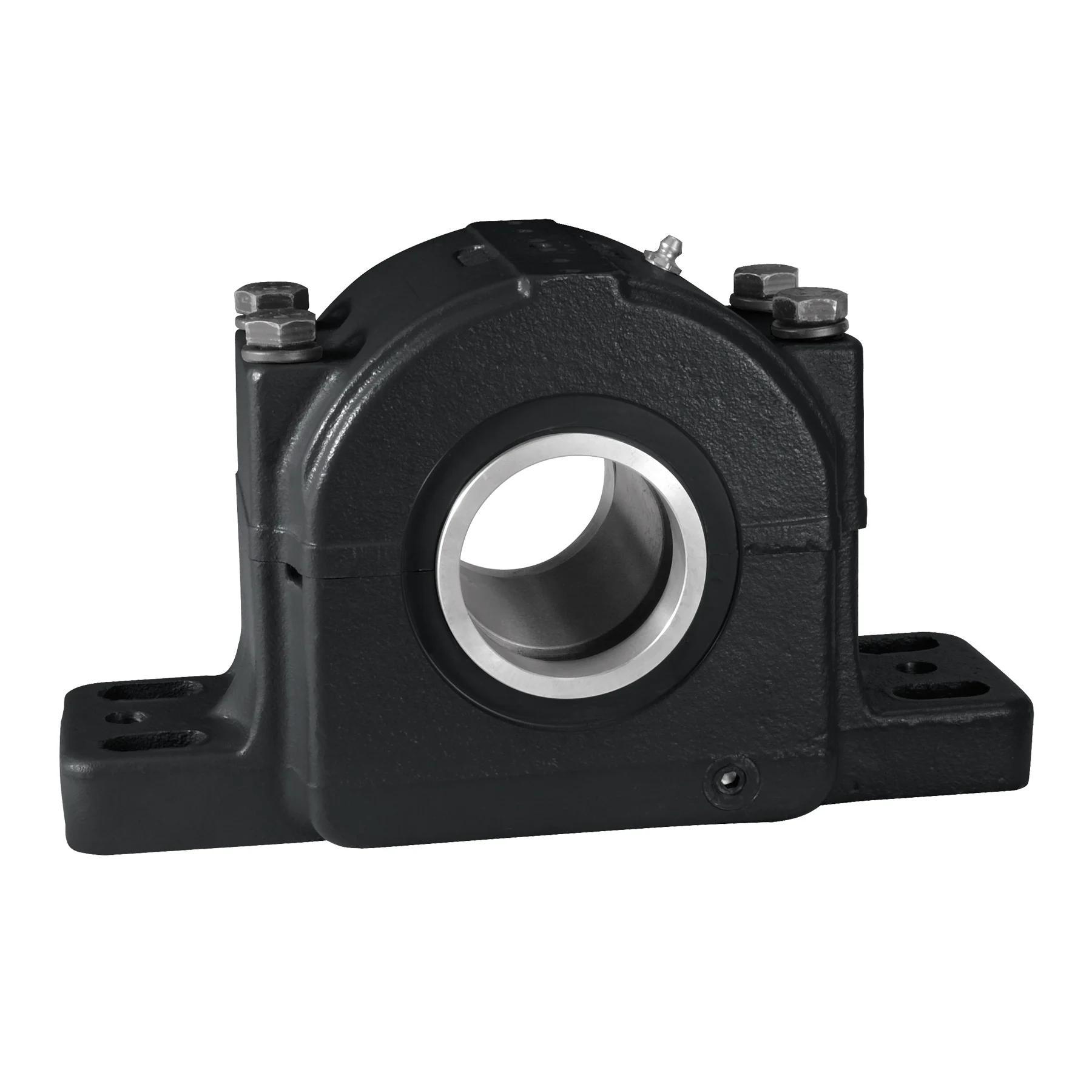

Link-Belt® 10435466 6800 2-Piece Split Pillow Block Spherical Roller Bearing, 2-15/16 in Dia Bore, 9-7/8 to 11 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 13 in OAL x 7-5/16 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKPLB6847FR
  • Alt Part Number: PLB6847FR
  • MPN: 10435466
  • UPC: 662327117184
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Self aligning spherical roller bearing pillow blocks and take-ups provide high load carrying capacity for radial or combination radial and thrust loads. They are designed for use on conveyors, dryers, road building equipment, runout tables, fans, crushers, hammermills and many other high-precision, heavy-duty applications.

Link-Belt® Pillow Block Spherical Roller Bearing, 2-Piece Split, Series: 6800, 2-15/16 in Bore, 9-7/8 to 11 in Bolt Center-to-Center Length, 3-3/4 in Base to Bore Centerline, 13 in Overall Length, 5 in Overall Width, 7-5/16 in Overall Height, Four-Bolt Base Mounting, Round Bore, 3-1/2 in Base Width, Adapter Mounted Locking Device, Multi-Labyrinth Seal, Non-Expansion (Fixed) Expansion, 58500 lb Dynamic/73500 lb Static Load, 225 deg F, 3000 rpm Grease/3250 rpm Oil Maximum, Cast Iron, Powder Coated

Base Width      :      3-1/2 in
Base to Bore Centerline      :      3-3/4 in
Bolt Center-to-Center Length      :      9-7/8 to 11 in
Bore Diameter      :      2-15/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Powder Coated
Load Capacity      :      58500 lb Dynamic/73500 lb Static
Locking Device      :      Adapter Mounted
Material      :      Cast Iron
Maximum Speed      :      3000 rpm Grease/3250 rpm Oil
Mounting Type      :      Four-Bolt Base
Overall Height      :      7-5/16 in
Overall Length      :      13 in
Overall Width      :      5 in
Seal Type      :      Multi-Labyrinth
Series      :      6800
Temperature Rating      :      225 deg F
Type      :      2-Piece Split
  • Removable housing cap
  • Caps and bases matched and marked
  • Base and cap are dowelled for accurate assembly and security
  • Large lubricant reservoir in base prolongs lubrication interval
  • Slotted bolt holes in base facilitate mounting, machined finish on base for firm seating on supporting surface
  • Dimpled flats for bearing monitor probes
  • Large reservoir for grease or oil storage
