Link-Belt® 10435245 LNKMPS239E1

200 series medium duty ball bearings provide design and performance features developed by decades of experience in supplying precision ball bearing inserts for other major mounted bearing manufacturers and complete mounted units to machinery and equipment manufacturers. They are priced competitively to bearings of comparable construction and design. In addition to sound basic design and construction, special features minimize the three most common causes of premature bearing failure loosening of bearings on rotating shafts, entrance of contaminants or loss of lubricant due to seal failure and insufficient housing strength.

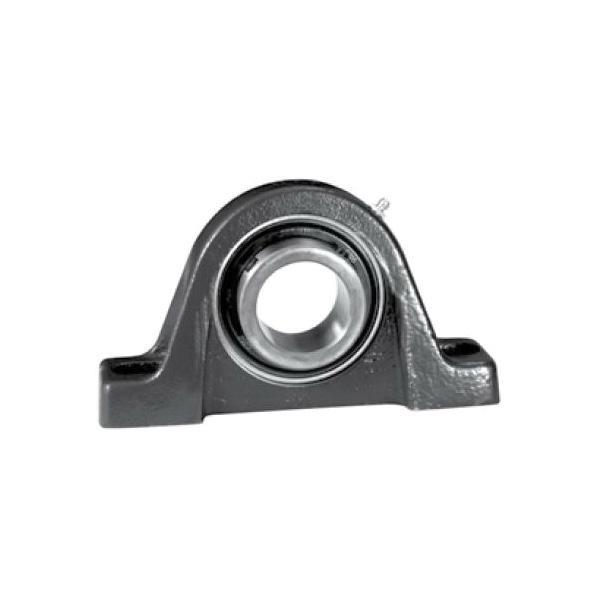

Link-Belt® Pillow Block Ball Bearing, Medium Duty, Series: 200, 2-7/16 in Bore, 8-1/4 in Bolt Center-to-Center Length, 3 in Base to Bore Centerline, 10-3/4 in Overall Length, 2-15/64 in Overall Width, 6 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-11/16 in Base Width, Set Screw Locking Device, Single Lip Seal, 14040 lb Dynamic/8620 lb Static Load, 400 deg F, 2850 rpm Maximum, Cast Iron, Powder Coated

• Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
• Spring locking collars of setscrew locking security, locks bearing to the shaft
• Housings are designed to withstand bearing load ratings, external vibration and shock
• Spherically seated bearing insert with anti-rotation device
• Standard backing
• Narrow inner ring
• FKM seal material
• Increase clearance
• Steel retainers
• High temperature grease

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_B440SC_Catalog.pdf
