Link-Belt® 10434886 LNKF3Y239H

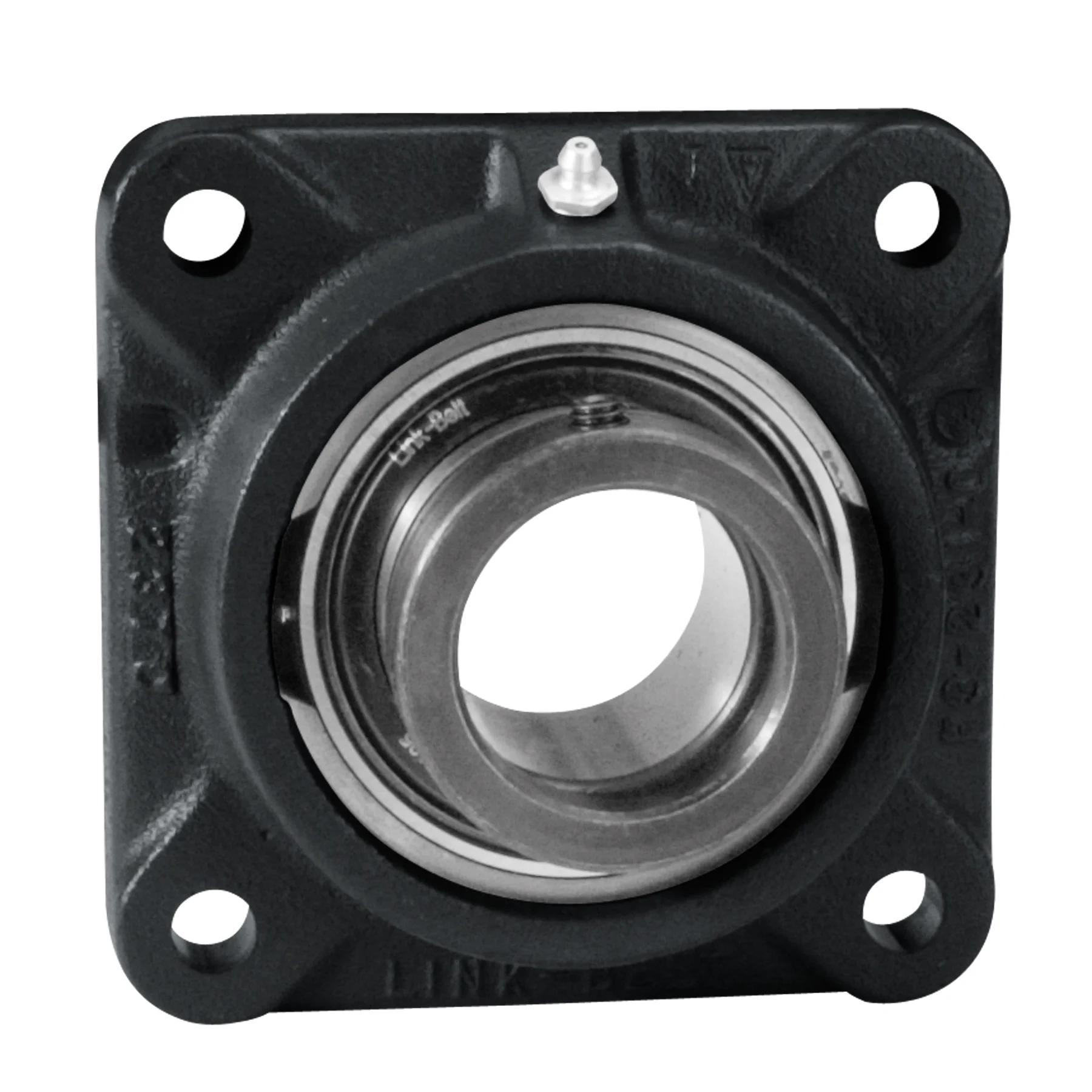

Link-Belt® 10434886 200 Standard Duty Flange Block Ball Bearing, 2-7/16 in Dia Bore, 5-5/8 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 6-7/8 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKF3Y239H
- Alt Part Number: F3Y239H
- MPN: 10434886
- UPC: 662327428266
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
- Sold As: 1/EA
-
Price:
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Standard Duty, Series: 200, 2-7/16 in Bore, 5-5/8 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 6-7/8 in Overall Length/Diameter, 3-1/8 in Overall Depth, 6-7/8 in Overall Height, Eccentric Cam Collar Locking Device, Alloy Steel Bearing, 11840 lb Dynamic/8080 lb Static Load, 4000 rpm Maximum, 225 deg F, Powder Coated
| Bearing Material | : | Alloy Steel |
| Bolt Center-to-Center Length | : | 5-5/8 in |
| Bore Diameter | : | 2-7/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Load Capacity | : | 11840 lb Dynamic/8080 lb Static |
| Locking Device | : | Eccentric Cam Collar |
| Maximum Speed | : | 4000 rpm |
| Overall Depth | : | 3-1/8 in |
| Overall Height | : | 6-7/8 in |
| Overall Length/Diameter | : | 6-7/8 in |
| Series | : | 200 |
| Temperature Rating | : | 225 deg F |
| Type | : | Standard Duty |
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Wide inner ring for increased shaft stability
- Cast iron housing
- Clearance seal
