Link-Belt® 10434756 LNKCSEB22439E
  1. pin-int

Link-Belt® 10434756 LNKCSEB22439E

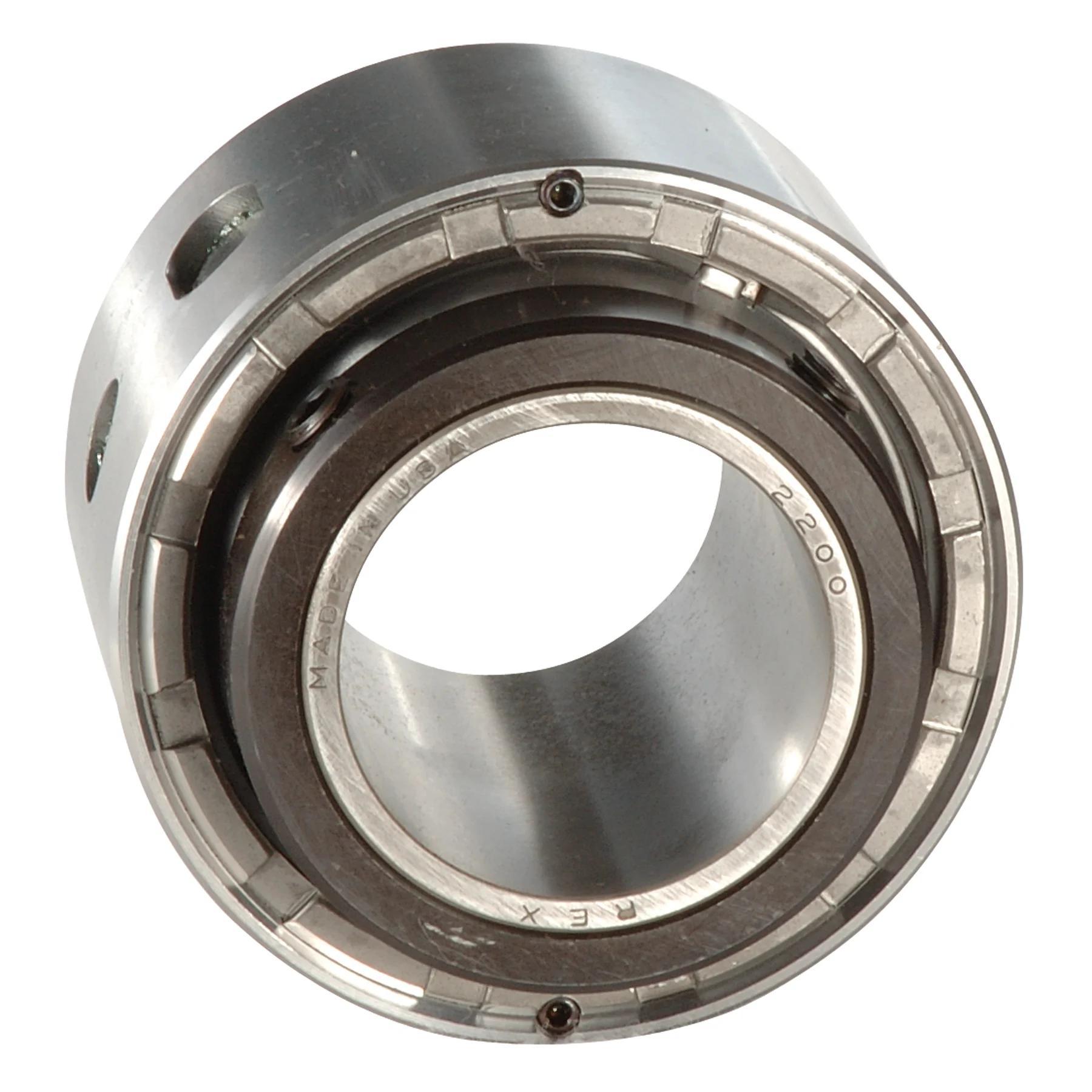

Link-Belt® 10434756 B22400 Mounted Spherical Roller Bearing Cartridge Block, 2-7/16 in Dia Bore, 4.621 in OD, 3-1/2 in W, 38300 lb Dynamic/53500 lb Static Load

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKCSEB22439E
  • Alt Part Number: CSEB22439E
  • MPN: 10434756
  • UPC: 662327012984
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Link-Belt® Spherical Roller Bearing Cartridge Block, Mounted, Series: B22400, 2-7/16 in Bore Dia, 4.621 in Outside Dia, 3-1/2 in Width, 38300 lb Dynamic/53500 lb Static Load, 1750 rpm Maximum, Uncoated

Bore Diameter      :      2-7/16 in
Finish      :      Uncoated
Load Capacity      :      38300 lb Dynamic/53500 lb Static
Maximum Speed      :      1750 rpm
Outside Diameter      :      4.621 in
Series      :      B22400
Type      :      Mounted
Width      :      3-1/2 in
  • Hardened spring locking single collar locks inner ring securely to shaft
  • Type E spring loaded lip seal
  • Steel housing
  • Misalignment capabilities total of 4 deg
  • Factory set clearance and lubrication
  • Extended inner ring
  • Separable outer rings
  • Bearings are easy to mount, sealed, pre-lubricated and do not require bearing adjustment during mounting
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_TDSB28360418_Manual.pdf
  • videoVIDEO LINK https://www.youtube.com/embed/UqK3ncamgek?wmode=opaque&autoplay=0&autohide=1&showinfo=0&controls=2&rel=0&enablejsapi=1
