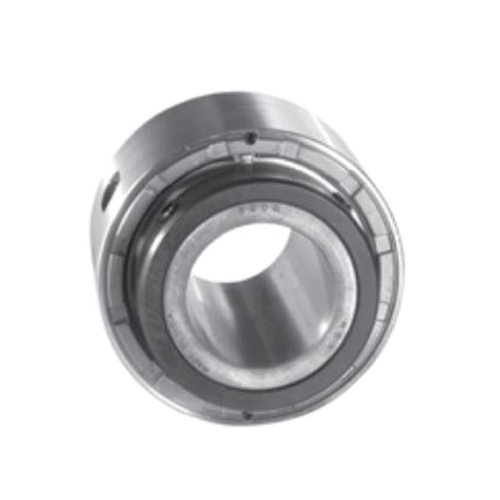

Link-Belt® 10431436 LNKCSEB22580H
Link-Belt® 10431436 Cartridge Block Spherical Roller Bearing With Double Locking Collar, 5 in Dia Bore, 9.3427 in OD, 2 Rows, 7-7/8 in W
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKCSEB22580H
- Alt Part Number: CSEB22580H
- MPN: 10431436
- UPC: 662327013462
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Series B22500 are double collar mounted spherical roller bearing units. These units provide economic and versatile arrangements for supporting shafts carrying substantial radial or combination radial and thrust loads. These units are especially adaptable for conveyors, elevators, general industrial machinery, heavier duty fans and blowers, power transmission applications, ditchers, trenchers, pavers and other such applications. These series of bearings are easy to mount, sealed, pre-lubricated and do not require bearing adjustment during mounting.
Link-Belt® Spherical Roller Bearing, Cartridge Block, Series: CSEB22500, 5 in Bore, 9.3427 in OD, 2 Rows, 7-7/8 in Width, 166200 lb Dynamic/241900 lb Static Load, 1200 rpm Maximum, -40 to 275 deg F
| Bore Diameter | : | 5 in |
| Load Capacity | : | 166200 lb Dynamic/241900 lb Static |
| Maximum Speed | : | 1200 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 9.3427 in |
| Series | : | CSEB22500 |
| Temperature Rating | : | -40 to 275 deg F |
| Type | : | Cartridge Block |
| Width | : | 7-7/8 in |
- Steel housing
- Misalignment capabilities - total of 4 deg
- Factory set clearance and lubrication
- Field interchangeable seals
- Two spring locking collars lock inner ring securely to shaft
Instruction/Installation Manual
