Link-Belt® 10430560 LNKPT3U222N
  1. pin-int

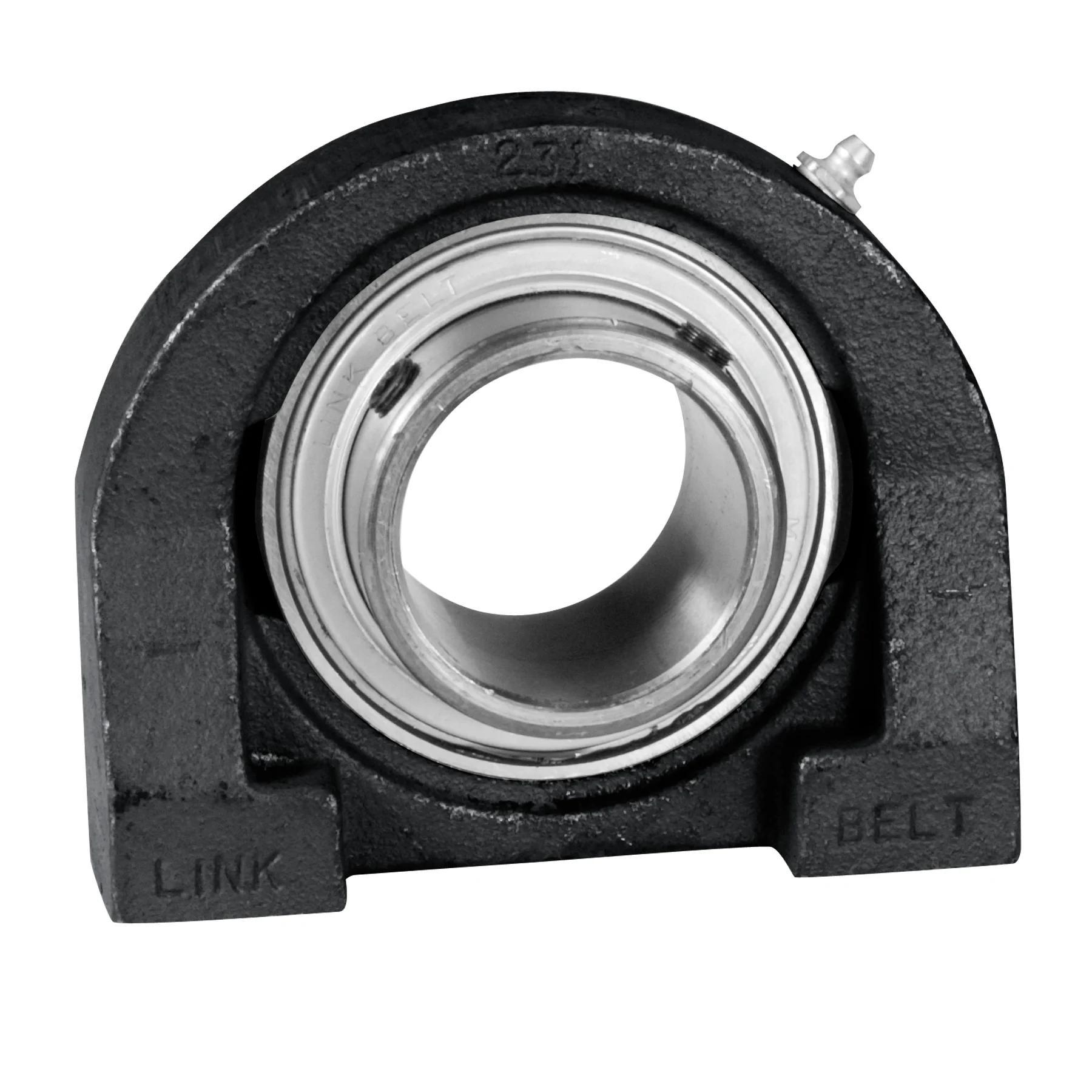

Link-Belt® 10430560 LNKPT3U222N

Link-Belt® 10430560 200 Standard-Duty Pillow Block Ball Bearing Unit, 1-3/8 in Dia Bore, 3-1/4 in L Bolt Center-to-Center, 1-7/8 in Base to Bore Centerline, 4-13/32 in OAL x 3-11/16 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKPT3U222N
  • Alt Part Number: PT3U222N
  • MPN: 10430560
  • UPC: 662327119805
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.

Link-Belt® Pillow Block Ball Bearing Unit, Standard-Duty, Series: 200, 1-3/8 in Bore, 3-1/4 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 4-13/32 in Overall Length, 1-49/64 in Overall Width, 3-11/16 in Overall Height, Tapped Base Mounting, 2 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 5810 lb Dynamic/3440 lb Static Load, 225 deg F, 6850 rpm Maximum, Cast Iron, Powder Coated

Base Width      :      2 in
Base to Bore Centerline      :      1-7/8 in
Bolt Center-to-Center Length      :      3-1/4 in
Bore Diameter      :      1-3/8 in
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Powder Coated
Load Capacity      :      5810 lb Dynamic/3440 lb Static
Locking Device      :      Set Screw
Material      :      Cast Iron
Maximum Speed      :      6850 rpm
Mounting Type      :      Tapped Base
Overall Height      :      3-11/16 in
Overall Length      :      4-13/32 in
Overall Width      :      1-49/64 in
Seal Type      :      Single Lip
Series      :      200
Temperature Rating      :      225 deg F
Type      :      Standard-Duty
  • Alignable precision deep groove ball bearing manufactured of quality alloy bearing steel provides high capacity and long life
  • Compact 1-piece housing provides excellent mounting support
  • Integral bearing seals
  • Wide inner ring for increased shaft stability
  • Relubricatable bearing
  • 207 size code
