Link-Belt® 10427623 LNKPL3Y226N
  1. pin-int

Link-Belt® 10427623 LNKPL3Y226N

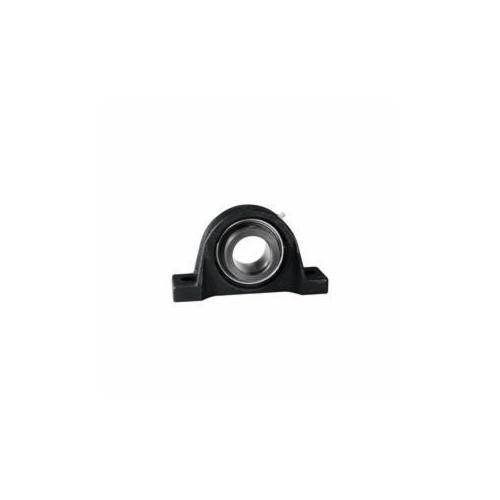

Link-Belt® 10427623 200 Standard-Duty Pillow Block Ball Bearing Unit, 1-5/8 in Dia Bore, 5-11/16 in L Bolt Center-to-Center, 2-1/16 in Base to Bore Centerline, 7-1/4 in OAL x 4-1/4 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKPL3Y226N
  • Alt Part Number: PL3Y226N
  • MPN: 10427623
  • UPC: 662327119195
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.

Link-Belt® Pillow Block Ball Bearing Unit, Standard-Duty, Series: 200, 1-5/8 in Bore, 5-11/16 in Bolt Center-to-Center Length, 2-1/16 in Base to Bore Centerline, 7-1/4 in Overall Length, 2-7/32 in Overall Width, 4-1/4 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2 in Base Width, Eccentric Collar Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 7370 lb Dynamic/4590 lb Static Load, 225 deg F, 5330 rpm Maximum, Cast Iron, Powder Coated

Base Width      :      2 in
Base to Bore Centerline      :      2-1/16 in
Bolt Center-to-Center Length      :      5-11/16 in
Bore Diameter      :      1-5/8 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Powder Coated
Load Capacity      :      7370 lb Dynamic/4590 lb Static
Locking Device      :      Eccentric Collar
Material      :      Cast Iron
Maximum Speed      :      5330 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      4-1/4 in
Overall Length      :      7-1/4 in
Overall Width      :      2-7/32 in
Seal Type      :      Single Lip
Series      :      200
Temperature Rating      :      225 deg F
Type      :      Standard-Duty
  • Alignable precision deep groove ball bearing manufactured of quality alloy bearing steel provides high capacity and long life
  • Compact 1-piece housing provides excellent mounting support
  • Non-relubricatable bearing
  • Low backing height
  • Integral bearing seals
  • Wide inner ring for increased shaft stability
  • Alignable and relubricatable
  • 209 size code
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
