Link-Belt® 10427355 LNKMFCS231N

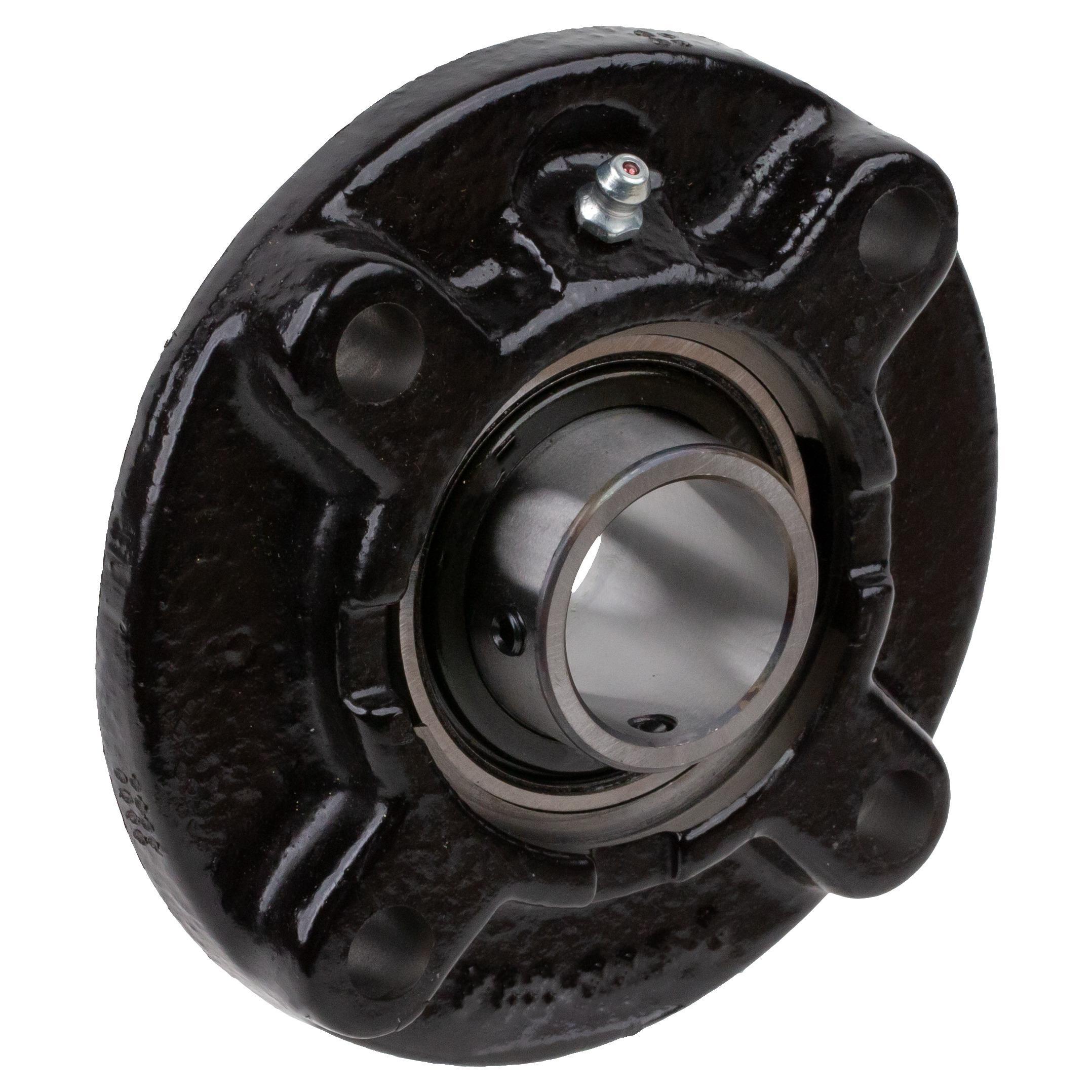

Link-Belt® 10427355 200 Medium Duty Flange Block Ball Bearing, 1-15/16 in Dia Bore, 5-3/8 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 6-3/8 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKMFCS231N
- Alt Part Number: MFCS231N
- MPN: 10427355
- UPC: 662864803915
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
200 series medium duty ball bearings provide design and performance features developed by decades of experience in supplying precision ball bearing inserts for other major mounted bearing manufacturers and complete mounted units to machinery and equipment manufacturers. They are priced competitively to bearings of comparable construction and design. In addition to sound basic design and construction, special features minimize the three most common causes of premature bearing failure loosening of bearings on rotating shafts, entrance of contaminants or loss of lubricant due to seal failure and insufficient housing strength.
Link-Belt® Flange Block Ball Bearing, Medium Duty, Series: 200, 1-15/16 in Bore, 5-3/8 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 6-3/8 in Overall Length/Diameter, 2-11/64 in Overall Depth, Set Screw Locking Device, 9800 lb Dynamic/6570 lb Static Load, 4360 rpm Maximum, 225 deg F, Powder Coated
| Bolt Circle Diameter | : | 5-3/8 in |
| Bore Diameter | : | 1-15/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Load Capacity | : | 9800 lb Dynamic/6570 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 4360 rpm |
| Overall Depth | : | 2-11/64 in |
| Overall Length/Diameter | : | 6-3/8 in |
| Series | : | 200 |
| Temperature Rating | : | 225 deg F |
| Type | : | Medium Duty |
- Alignable and relubricatable
- Cast iron housing
- Single lip contact seal
- Narrow inner ring
