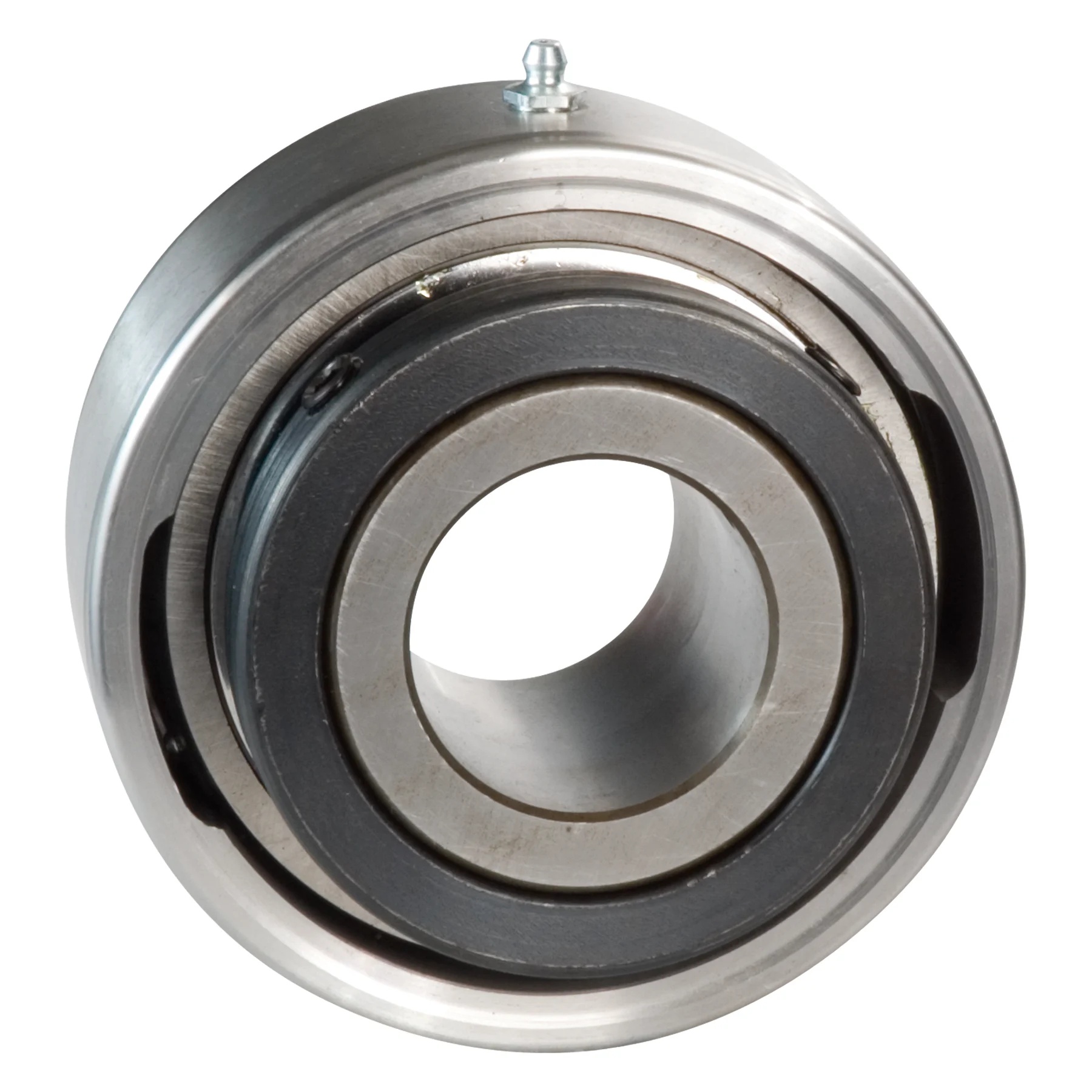

Link-Belt® 10425482 LNKCU320
Link-Belt® 10425482 300 Heavy Duty Fixed Mounted Cartridge Block Ball Bearing Unit, 1-1/4 in Dia Bore, 3-3/4 in OD, 2-3/32 in W, 7490 lb Dynamic/4290 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKCU320
- Alt Part Number: CU320
- MPN: 10425482
- UPC: 662327734398
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans and blowers and heavier duty power transmission and material handling equipment.
Link-Belt® Cartridge Block Ball Bearing Unit, Heavy Duty Fixed Mounted, Series: 300, 1-1/4 in Bore Dia, 3-3/4 in Outside Dia, 2-3/32 in Width, 7490 lb Dynamic/4290 lb Static Load, Formed Steel Bearing, 7550 rpm Maximum, 225 deg F, Uncoated
| Bearing Material | : | Formed Steel |
| Bore Diameter | : | 1-1/4 in |
| Finish | : | Uncoated |
| Load Capacity | : | 7490 lb Dynamic/4290 lb Static |
| Maximum Speed | : | 7550 rpm |
| Outside Diameter | : | 3.75 in |
| Series | : | 300 |
| Temperature Rating | : | 225 deg F |
| Type | : | Heavy Duty Fixed Mounted |
| Width | : | 2-3/32 in |
- Provides a cool running, quiet, high-speed and high-load capacity bearing
- Spyglass optical strain sensor technology
- Positive locking system minimizes vibration
- Case carburized inner ring resists fracture under shock and heavy loads
- Tapered adapter assembly
- Bearing sealed unit and relubricatable
- Setscrew locking device
- Heavy series precision alignable ball bearings of deep groove construction with larger balls and thicker rings for high capacity and longer life
- Compact 1-piece cast iron housings provide strength with minimum size, weight and excellent rigidity
- Clearance seal
- 323 size code
