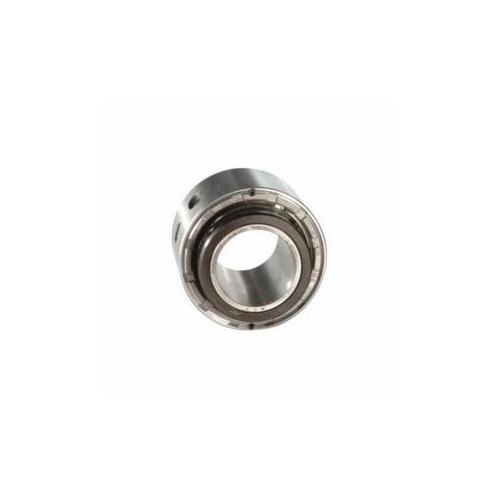

Link-Belt® 10425471 LNKCSEB22428H
Link-Belt® 10425471 B22400 Mounted Spherical Roller Bearing Cartridge Block, 1-3/4 in Dia Bore, 3.636 in OD, 3-1/8 in W, 24700 lb Dynamic/28700 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKCSEB22428H
- Alt Part Number: CSEB22428H
- MPN: 10425471
- UPC: 662327012908
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Link-Belt® Spherical Roller Bearing Cartridge Block, Mounted, Series: B22400, 1-3/4 in Bore Dia, 3.636 in Outside Dia, 3-1/8 in Width, 24700 lb Dynamic/28700 lb Static Load, 2350 rpm Maximum, Uncoated
| Bore Diameter | : | 1-3/4 in |
| Finish | : | Uncoated |
| Load Capacity | : | 24700 lb Dynamic/28700 lb Static |
| Maximum Speed | : | 2350 rpm |
| Outside Diameter | : | 3.636 in |
| Series | : | B22400 |
| Type | : | Mounted |
| Width | : | 3-1/8 in |
- Hardened spring locking single collar locks inner ring securely to shaft
- Type H floating labyrinth seal
- Steel housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Extended inner ring
- Separable outer rings
- Bearings are easy to mount, sealed, pre-lubricated and do not require bearing adjustment during mounting
