Link-Belt® 10424565 LNKPKB22419H

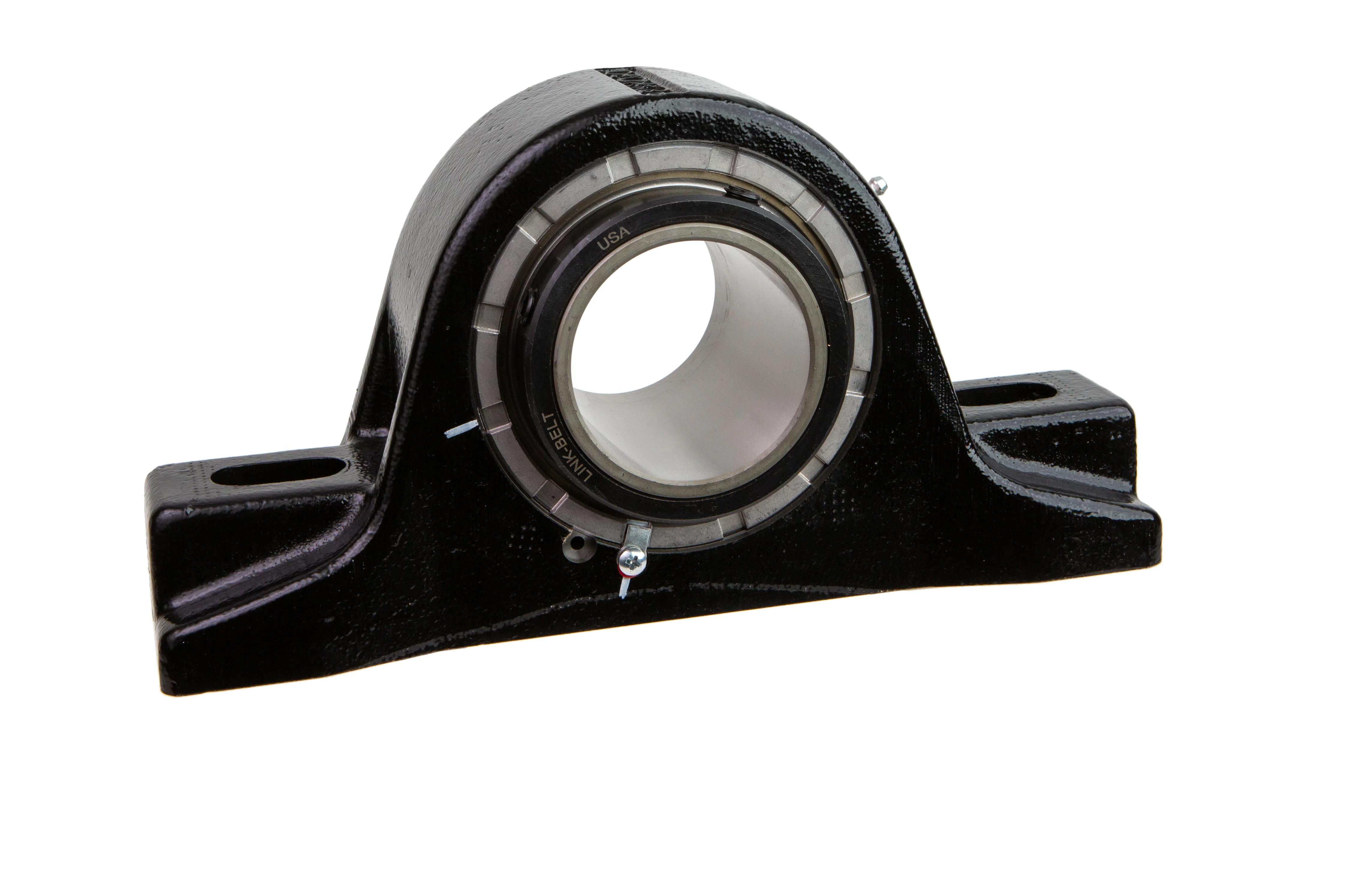

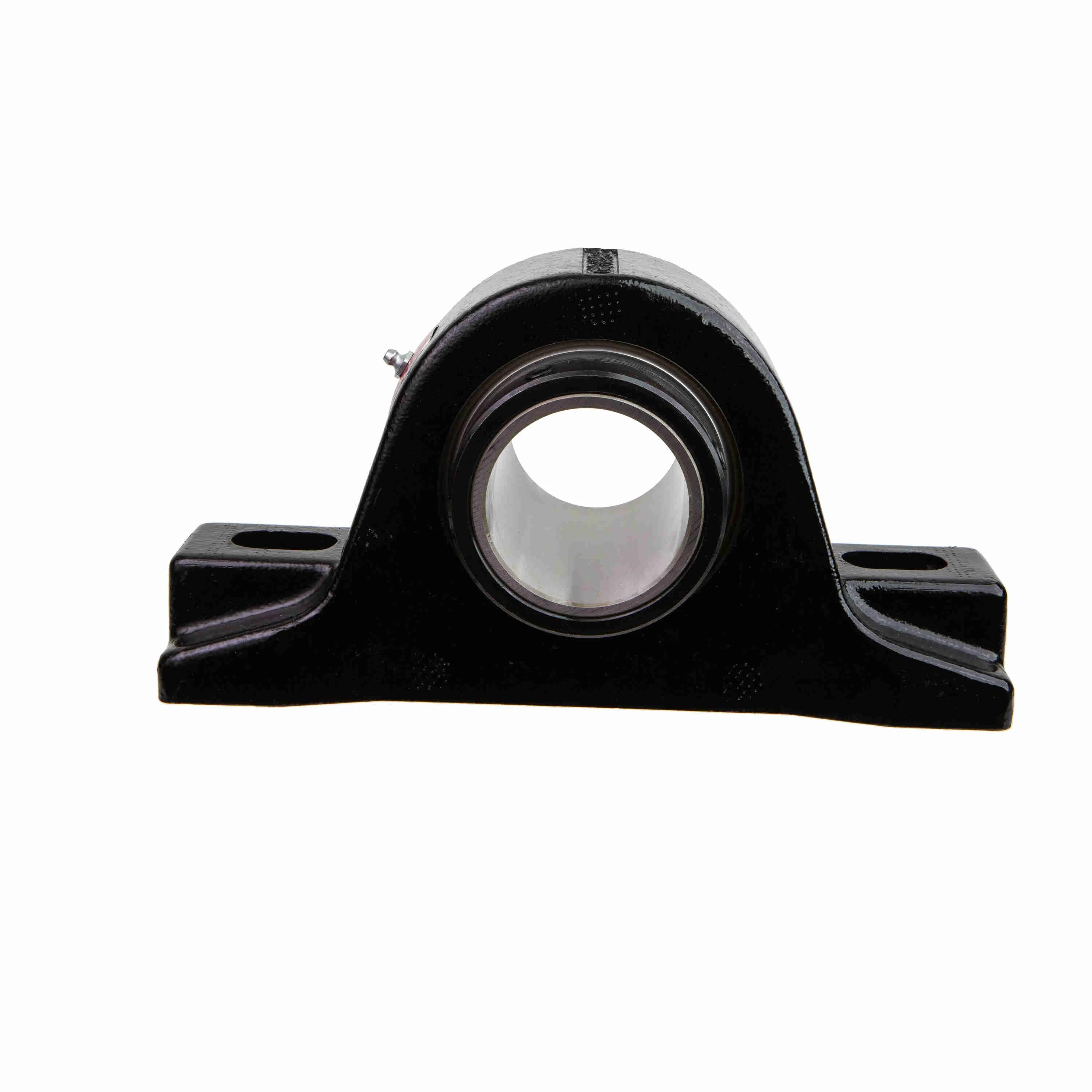

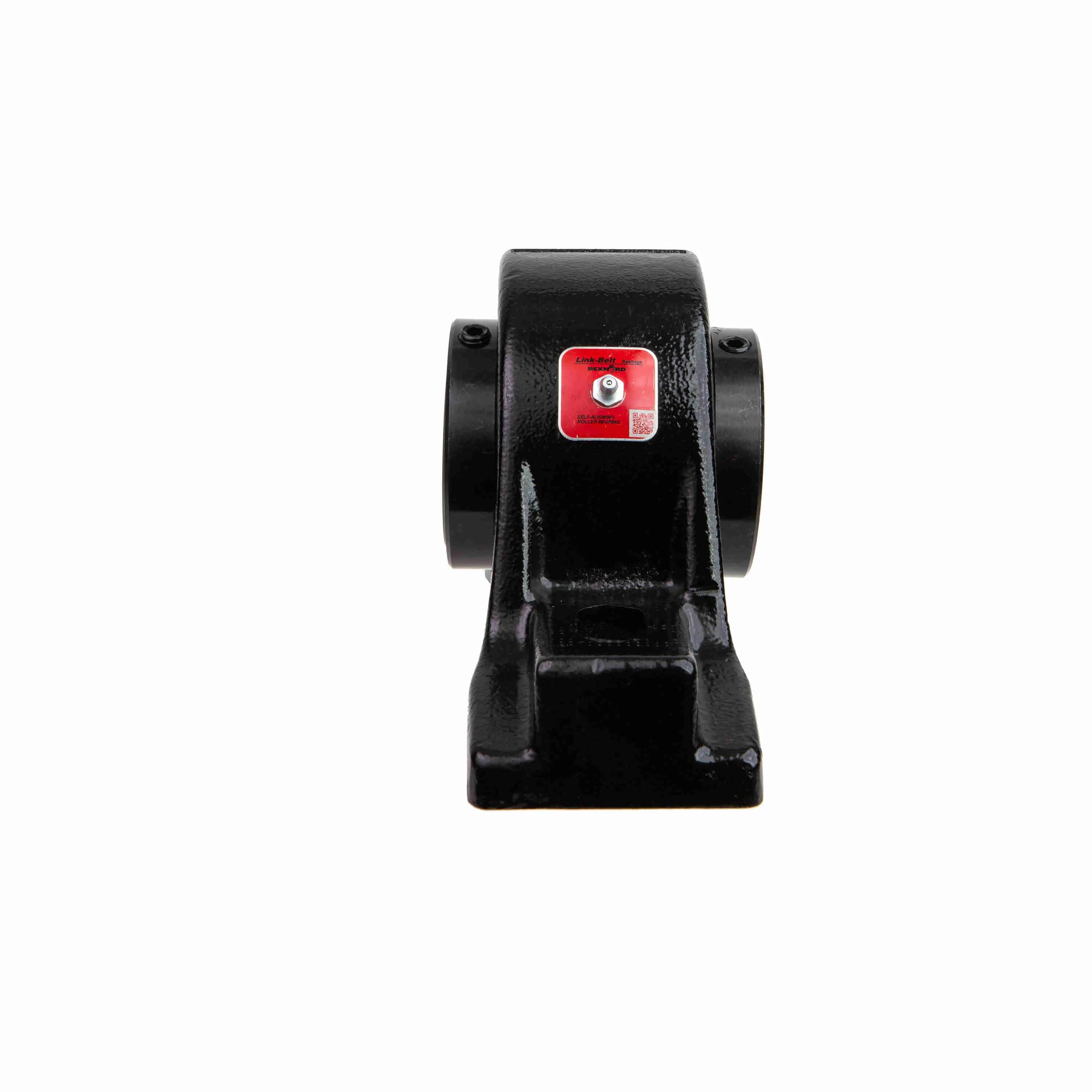

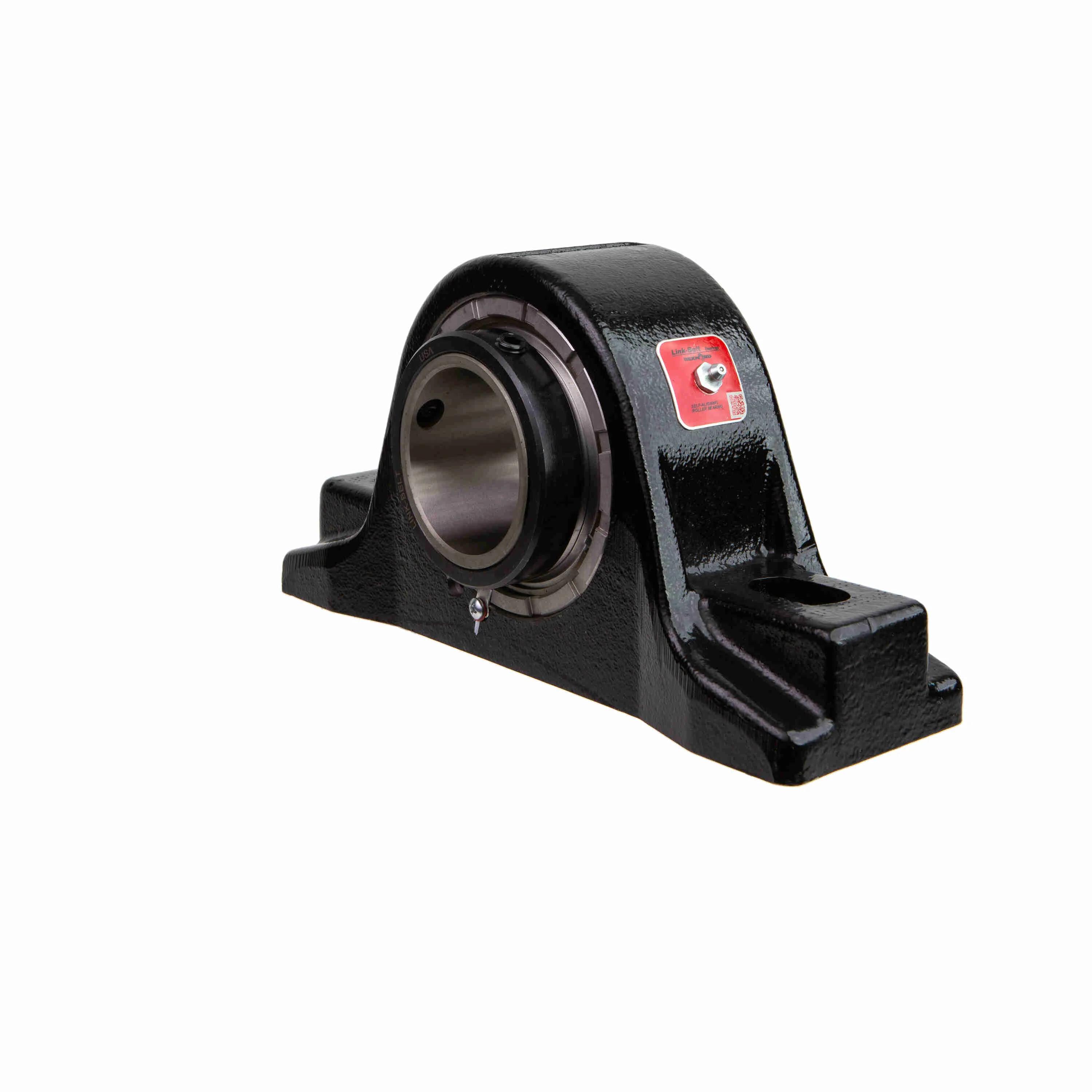

Link-Belt® 10424565 Solid Housed Pillow Block, 1.18 in Dia Bore, 4.75 in L Bolt Center-to-Center, 1.75 in Base to Bore Centerline
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKPKB22419H
- Alt Part Number: PKB22419H
- MPN: 10424565
- UPC: 662327114220
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
- Sold As: 1/EA
-
Price:
Link-Belt®, 10424565, Pillow Block, Solid Housed, 1.18 in Bore, 4.75 in Bolt Center-to-Center Length, 1.75 in Base to Bore Centerline, 2-Bolt Base Mounting, Single Set Screw Collar Locking Device, Floating Labyrinth Seal, Non-Expansion, 16900 lb Dynamic/18300 lb Static Load, 4000 rpm Maximum, Cast Steel, Powder Coated
| Base to Bore Centerline | : | 1.75 in |
| Bolt Center-to-Center Length | : | 4.75 in |
| Bore Diameter | : | 1.18 in |
| Expansion Type | : | Non-Expansion |
| Finish | : | Powder Coated |
| Load Capacity | : | 16900 lb Dynamic/18300 lb Static |
| Locking Device | : | Single Set Screw Collar |
| Material | : | Cast Steel |
| Maximum Speed | : | 4000 rpm |
| Mounting Type | : | 2-Bolt Base |
| Seal Type | : | Floating Labyrinth |
| Type | : | Solid Housed |
