Link-Belt® 10422681 LNKFCU316
  1. pin-int

Link-Belt® 10422681 LNKFCU316

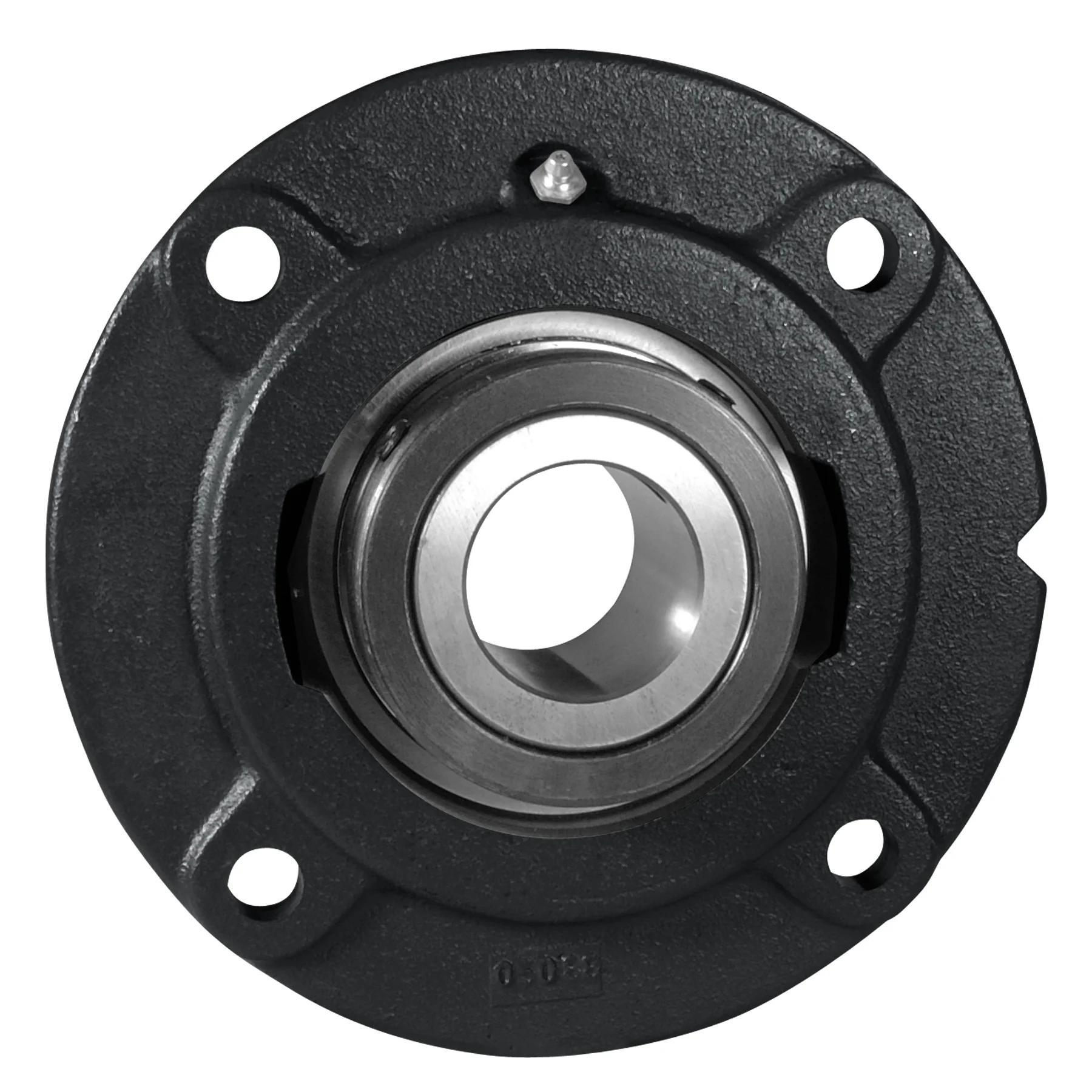

Link-Belt® 10422681 300 Heavy Duty Flanged Ball Bearing Cartridge Unit, 1 in Dia Bore, 4-1/2 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 5-3/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKFCU316
  • Alt Part Number: FCU316
  • MPN: 10422681
  • UPC: 662327882693
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans and blowers and heavier duty power transmission and material handling equipment.

Link-Belt® Flanged Ball Bearing Cartridge Unit, Heavy Duty, Series: 300, 1 in Bore, 4-1/2 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 5-3/8 in Overall Length/Diameter, 1-43/64 in Overall Depth, 5-3/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Steel-Clad Molded Rubber Seal, 4810 lb Dynamic/2450 lb Static Load, 9350 rpm Maximum, 225 deg F

Bearing Material      :      Steel
Bolt Circle Diameter      :      4-1/2 in
Bore Diameter      :      1 in
Flange Mounting Type      :      4-Bolt Round
Load Capacity      :      4810 lb Dynamic/2450 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      9350 rpm
Overall Depth      :      1-43/64 in
Overall Height      :      5-3/8 in
Overall Length/Diameter      :      5-3/8 in
Seal Material      :      Steel-Clad Molded Rubber
Series      :      300
Temperature Rating      :      225 deg F
Type      :      Heavy Duty
  • Steel-clad molded type H clearance seal
  • Alignable precision deep groove ball bearing of quality alloy bearing steel provides high capacity for radial/thrust loads
  • Wide inner ring for greater contact surface between shaft and bearing
  • Relubricatable, alignable
  • Non-expansion type
  • Clearance seal
  • Corrosion-resistant powder coating, cast iron housing
