Link-Belt® 10417081 LNKPEA363

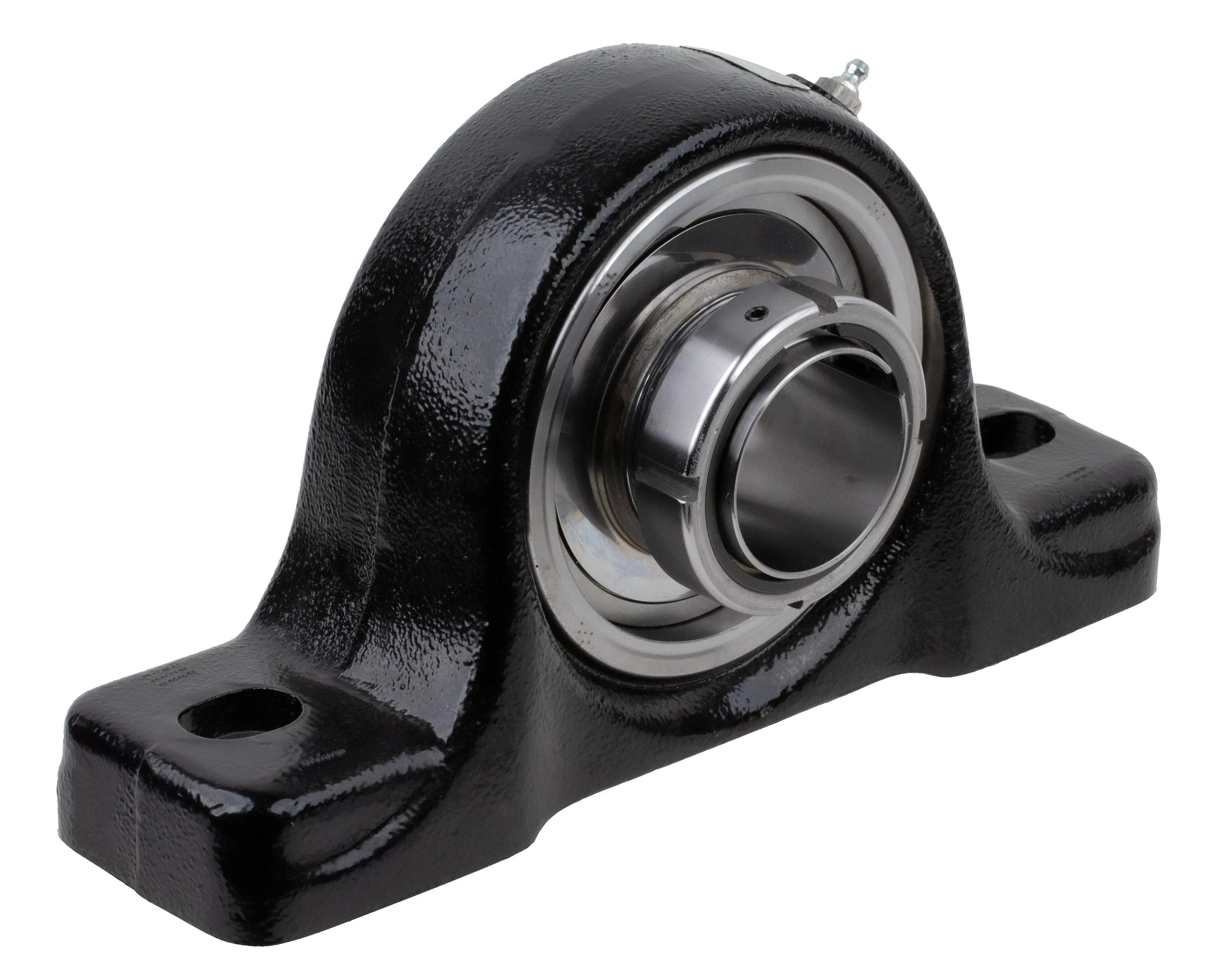

Link-Belt® 10417081 300 Heavy Duty Pillow Block Ball Bearing, 3-15/16 in Dia Bore, 14-1/2 in L Bolt Center-to-Center, 5-11/16 in Base to Bore Centerline, 17-5/16 in OAL x 11-1/16 in OAH
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKPEA363
- Alt Part Number: PEA363
- MPN: 10417081
- UPC: 662864297097
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.
Link-Belt® Pillow Block Ball Bearing, Heavy Duty, Series: 300, 3-15/16 in Bore, 14-1/2 in Bolt Center-to-Center Length, 5-11/16 in Base to Bore Centerline, 17-5/16 in Overall Length, 5-29/32 in Overall Width, 11-1/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 5 in Base Width, Shurlok® Adapter Mount Locking Device, Clearance Seal, Expansion, 45000 lb Dynamic/31600 lb Static Load, 225 deg F, 2750 rpm Maximum, Cast Iron, Powder Coated
| Base Width | : | 5 in |
| Base to Bore Centerline | : | 5-11/16 in |
| Bolt Center-to-Center Length | : | 14-1/2 in |
| Bore Diameter | : | 3-15/16 in |
| Bore Type | : | Round |
| Expansion Type | : | Expansion |
| Finish | : | Powder Coated |
| Load Capacity | : | 45000 lb Dynamic/31600 lb Static |
| Locking Device | : | Shurlok® Adapter Mount |
| Material | : | Cast Iron |
| Maximum Speed | : | 2750 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 11-1/16 in |
| Overall Length | : | 17-5/16 in |
| Overall Width | : | 5-29/32 in |
| Seal Type | : | Clearance |
| Series | : | 300 |
| Temperature Rating | : | 225 deg F |
| Type | : | Heavy Duty |
- Provides a cool running, quiet, high-speed and high-load capacity bearing
- Wide inner ring is for greater contact surface between shaft and bearing
- Case carburized inner ring resists fracture under shock and heavy loads
- Heavy series precision alignable ball bearings of deep groove construction with larger balls and thicker rings for high capacity and longer life
- Compact, 1-piece cast iron housings provide strength with minimum size and weight and excellent rigidity
- Spyglass Optical Strain Sensor (OSS) technology
- Positive locking system minimizes vibration
- Tapered adapter sleeve
- Bearing sealed unit
- Alignable and relubricatable
- Steel clad clearance seal
