Link-Belt® 10417066 LNKPB22631HK81

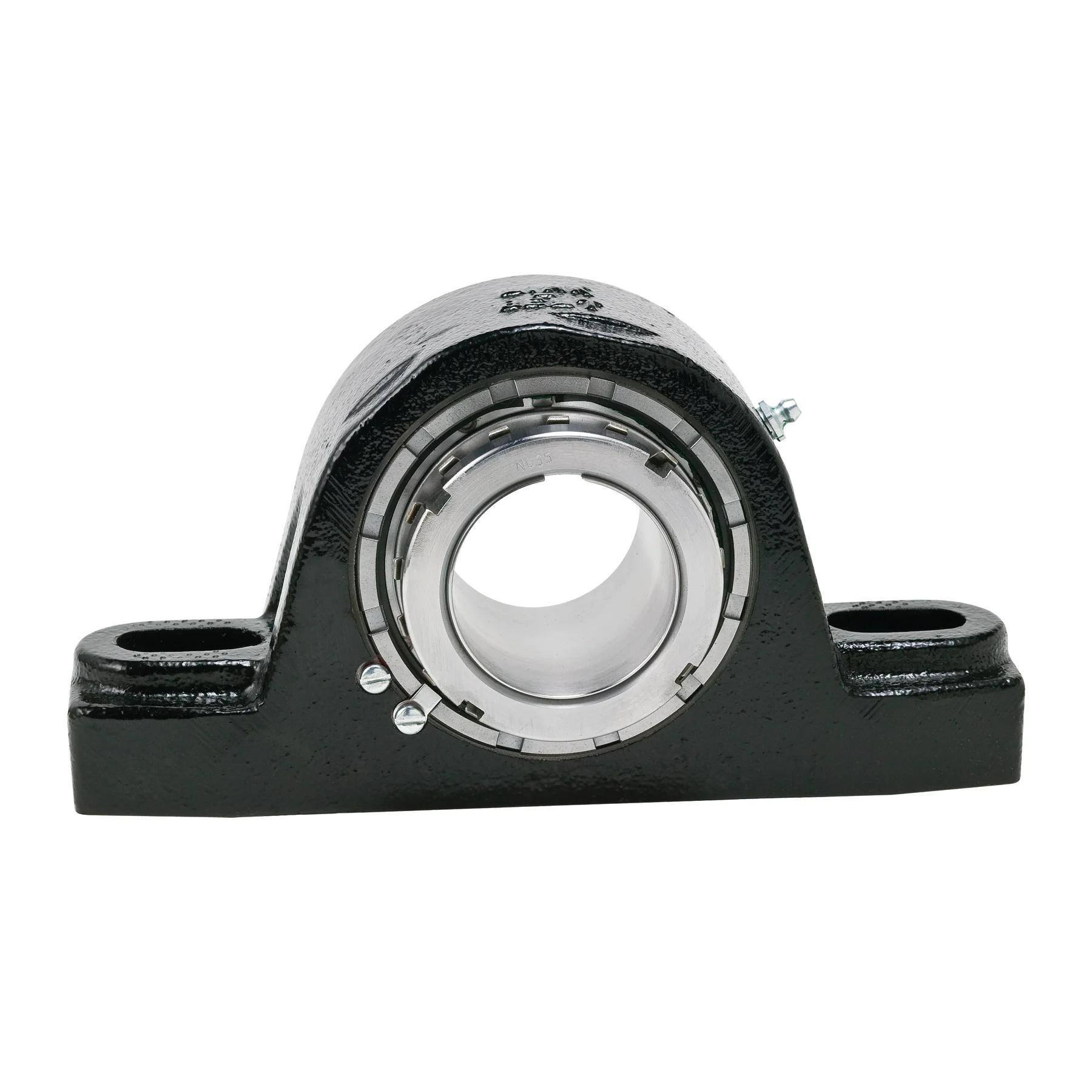

Link-Belt® 10417066 B22600 Solid Housed Pillow Block Spherical Roller Bearing Unit, 1-15/16 in Dia Bore, 6-1/4 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8-1/8 in OAL x 4-9/16 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKPB22631HK81
  • Alt Part Number: PB22631HK81
  • MPN: 10417066
  • UPC: 662327988395
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Self-aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.

Link-Belt® Pillow Block Spherical Roller Bearing Unit, Solid Housed, Series: B22600, 1-15/16 in Bore, 6-1/4 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8-1/8 in Overall Length, 3.08 in Overall Width, 4-9/16 in Overall Height, Two-Bolt Base Mounting, 2-1/2 in Base Width, Adapter Mounted Locking Device, Clearance/Floating Labyrinth Seal, Non-Expansion (Fixed) Expansion, 25900 lb Dynamic/33200 lb Static Load, 2800 rpm Maximum, Cast Iron, Powder Coated

Base Width      :      2-1/2 in
Base to Bore Centerline      :      2-1/4 in
Bolt Center-to-Center Length      :      6-1/4 in
Bore Diameter      :      1-15/16 in
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Powder Coated
Load Capacity      :      25900 lb Dynamic/33200 lb Static
Locking Device      :      Adapter Mounted
Material      :      Cast Iron
Maximum Speed      :      2800 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      4-9/16 in
Overall Length      :      8-1/8 in
Overall Width      :      3.08 in
Seal Type      :      Clearance/Floating Labyrinth
Series      :      B22600
Type      :      Solid Housed
  • Long inner ring for high stability and load support
  • Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
  • Double contoured retainer pockets
  • Slotted bolt holes in pillow block
  • Pre-lubricated and do not require bearing adjustment during mounting
  • Corrosion resistant
  • Spherical roller bearing extended inner ring separable outer rings
  • 90 deg lube fitting
