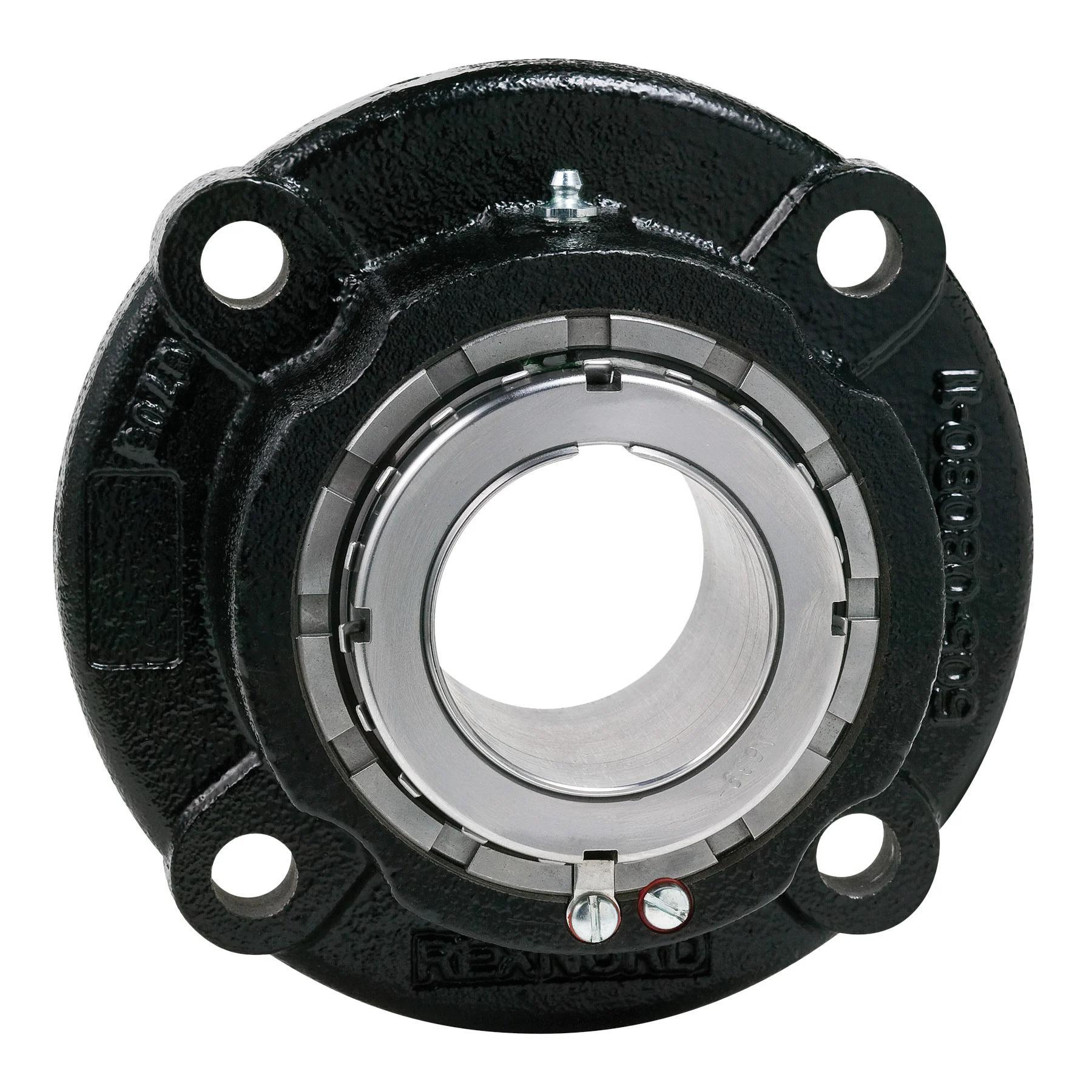

Link-Belt® 10416603 LNKFB22631H

Self-aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.

Link-Belt® Flanged Spherical Roller Bearing, Fixed, Series: B22600, 1-15/16 in Bore, 4-1/16 in Bolt Center-to-Center Length, 5-3/4 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 6-11/16 in Overall Length/Diameter, 3-9/16 in Overall Depth, Adapter Mounted Locking Device, Cast Iron Bearing, 21200 lb Dynamic/33200 lb Static Load, 2800 rpm Maximum, 225 deg F, Powder Coated

• Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
• Double contoured retainer pockets
• Type H floating labyrinth seals have multiple self centering rings held securely in a steel carrier
• 4 deg misalignment capabilities
• Factory set clearance and lubrication
• Enhanced life mounting style

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_BY409302_Manual.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Catalog.pdf
• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Warranty.pdf
• VIDEO LINK https://youtu.be/UqK3ncamgek
