Link-Belt® 10413444 LNKCB22419H

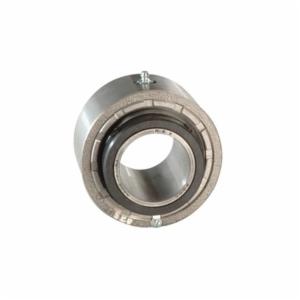

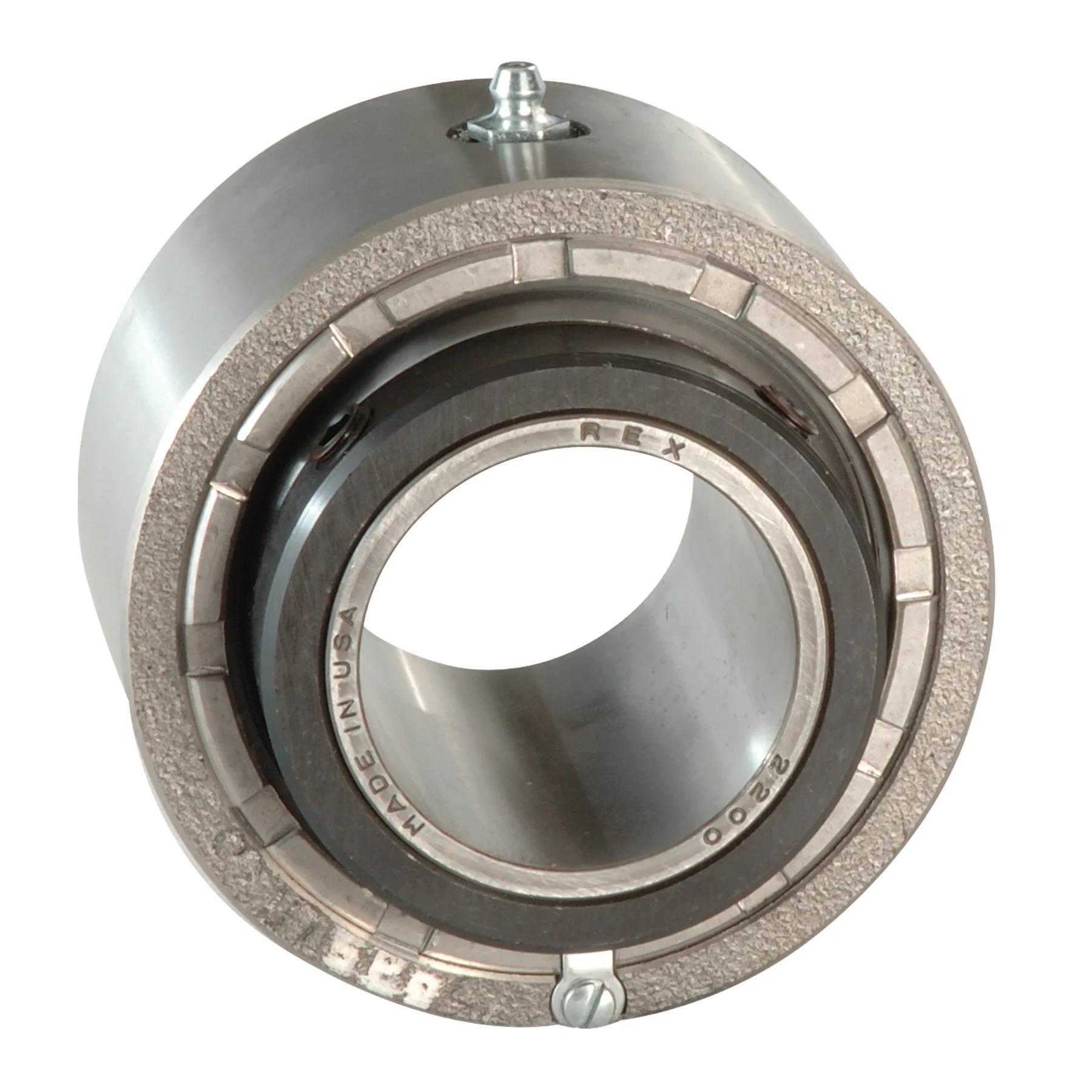

Link-Belt® 10413444 B22400 Mounted Spherical Roller Bearing Cartridge Block, 1-3/16 in Dia Bore, 3.219 in OD, 2-23/32 in W, 16900 lb Dynamic/18300 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKCB22419H
- Alt Part Number: CB22419H
- MPN: 10413444
- UPC: 662327010638
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Link-Belt® Spherical Roller Bearing Cartridge Block, Mounted, Series: B22400, 1-3/16 in Bore Dia, 3.219 in Outside Dia, 2-23/32 in Width, 16900 lb Dynamic/18300 lb Static Load, 4000 rpm Maximum, 225 deg F, Powder Coated
| Bore Diameter | : | 1-3/16 in |
| Finish | : | Powder Coated |
| Load Capacity | : | 16900 lb Dynamic/18300 lb Static |
| Maximum Speed | : | 4000 rpm |
| Outside Diameter | : | 3.219 in |
| Series | : | B22400 |
| Temperature Rating | : | 225 deg F |
| Type | : | Mounted |
| Width | : | 2-23/32 in |
- Hardened spring locking single collar locks inner ring securely to shaft
- Type H floating labyrinth seal
- Corrosion-resistant powder coating
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Clearance seal
- Extended inner ring
- Separable outer rings
- Bearings are easy to mount, sealed, pre-lubricated and do not require bearing adjustment during mounting
