Link-Belt® 10412867 LNKFX3CL2E20N

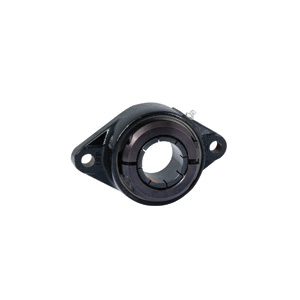

Link-Belt® 10412867 200 Standard Duty Flange Block Ball Bearing, 1-1/4 in Dia Bore, 4-19/32 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-3/16 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKFX3CL2E20N
- MPN: 10412867
- UPC: 662864291729
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Standard Duty, Series: 200, 1-1/4 in Bore, 4-19/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/16 in Overall Length/Diameter, 2-1/4 in Overall Depth, 5-19/32 in Overall Height, Centrik-Lok Locking Device, Alloy Steel Bearing, 4390 lb Dynamic/2530 lb Static Load, 8000 rpm Maximum, 225 deg F, Powder Coated
| Bearing Material | : | Alloy Steel |
| Bolt Center-to-Center Length | : | 4-19/32 in |
| Bore Diameter | : | 1-1/4 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 2-Bolt |
| Load Capacity | : | 4390 lb Dynamic/2530 lb Static |
| Locking Device | : | Centrik-Lok |
| Maximum Speed | : | 8000 rpm |
| Overall Depth | : | 2-1/4 in |
| Overall Height | : | 5-19/32 in |
| Overall Length/Diameter | : | 3-3/16 in |
| Series | : | 200 |
| Temperature Rating | : | 225 deg F |
| Type | : | Standard Duty |
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Wide inner ring for increased shaft stability
- Cast iron housing
- Single lip contact sea
