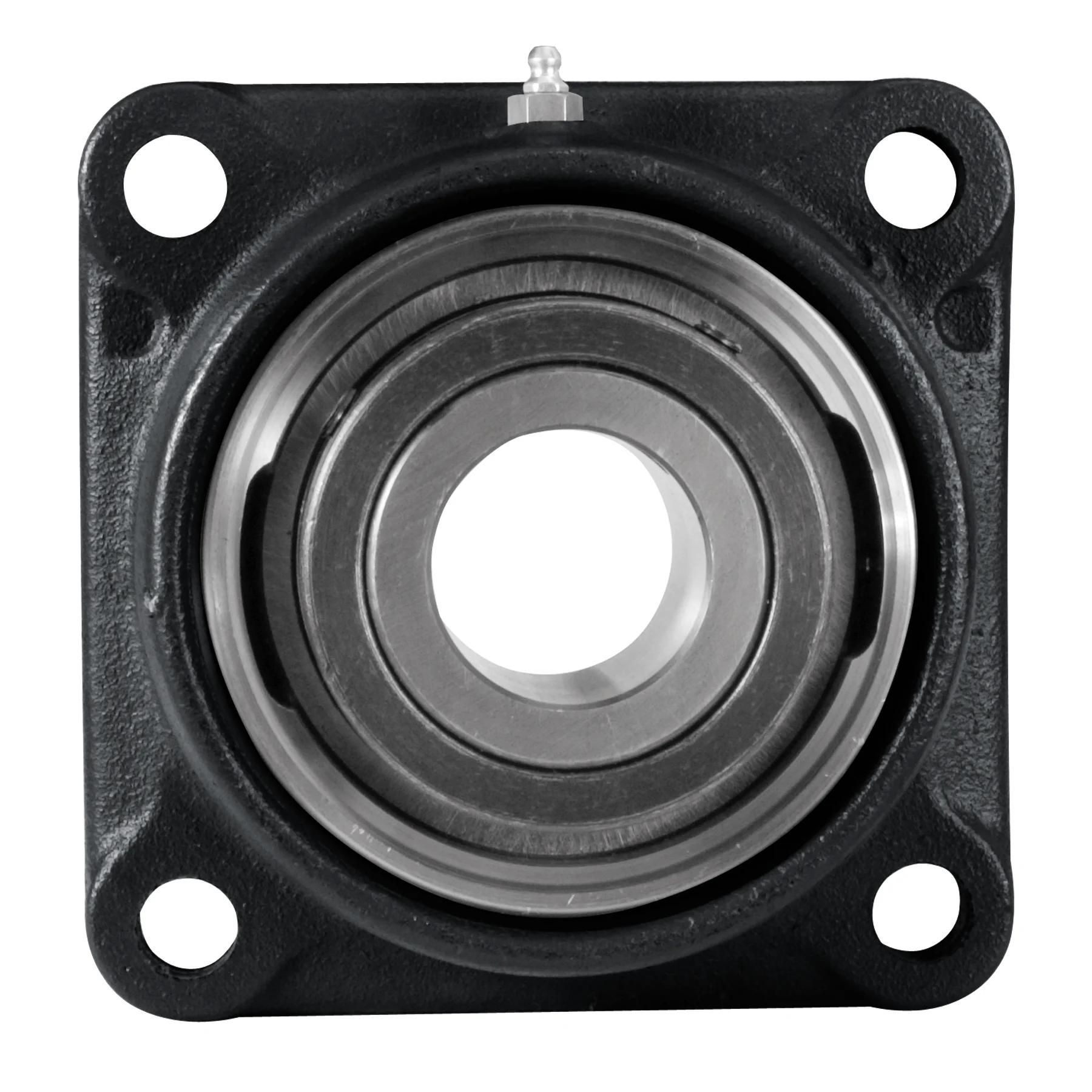

Link-Belt® 10412840 300 Heavy Duty Flanged Ball Bearing Cartridge Unit, 1-3/16 in Dia Bore, 3-13/16 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 4-15/16 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKFEU319
  • Alt Part Number: FEU319
  • MPN: 10412840
  • UPC: 662327883065
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans and blowers and heavier duty power transmission and material handling equipment.

Link-Belt® Flanged Ball Bearing Cartridge Unit, Heavy Duty, Series: 300, 1-3/16 in Bore, 3-13/16 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 4-15/16 in Overall Length/Diameter, 1-59/64 in Overall Depth, 4-15/16 in Overall Height, Set Screw Locking Device, Steel Bearing, Steel-Clad Molded Rubber Seal, 6320 lb Dynamic/3530 lb Static Load, 8300 rpm Maximum, 225 deg F

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      3-13/16 in
Bore Diameter      :      1-3/16 in
Flange Mounting Type      :      4-Bolt Square
Load Capacity      :      6320 lb Dynamic/3530 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      8300 rpm
Overall Depth      :      1-59/64 in
Overall Height      :      4-15/16 in
Overall Length/Diameter      :      4-15/16 in
Seal Material      :      Steel-Clad Molded Rubber
Series      :      300
Temperature Rating      :      225 deg F
Type      :      Heavy Duty
  • Steel-clad molded type H clearance seal
  • Alignable precision deep groove ball bearing of quality alloy bearing steel provides high capacity for radial/thrust loads
  • Wide inner ring for greater contact surface between shaft and bearing
  • Relubricatable, alignable
  • Expansion type
  • Clearance seal
  • Corrosion-resistant powder coating, cast iron housing
