Link-Belt® 10412647 LNKCSEB22432H
  1. pin-int

Link-Belt® 10412647 LNKCSEB22432H

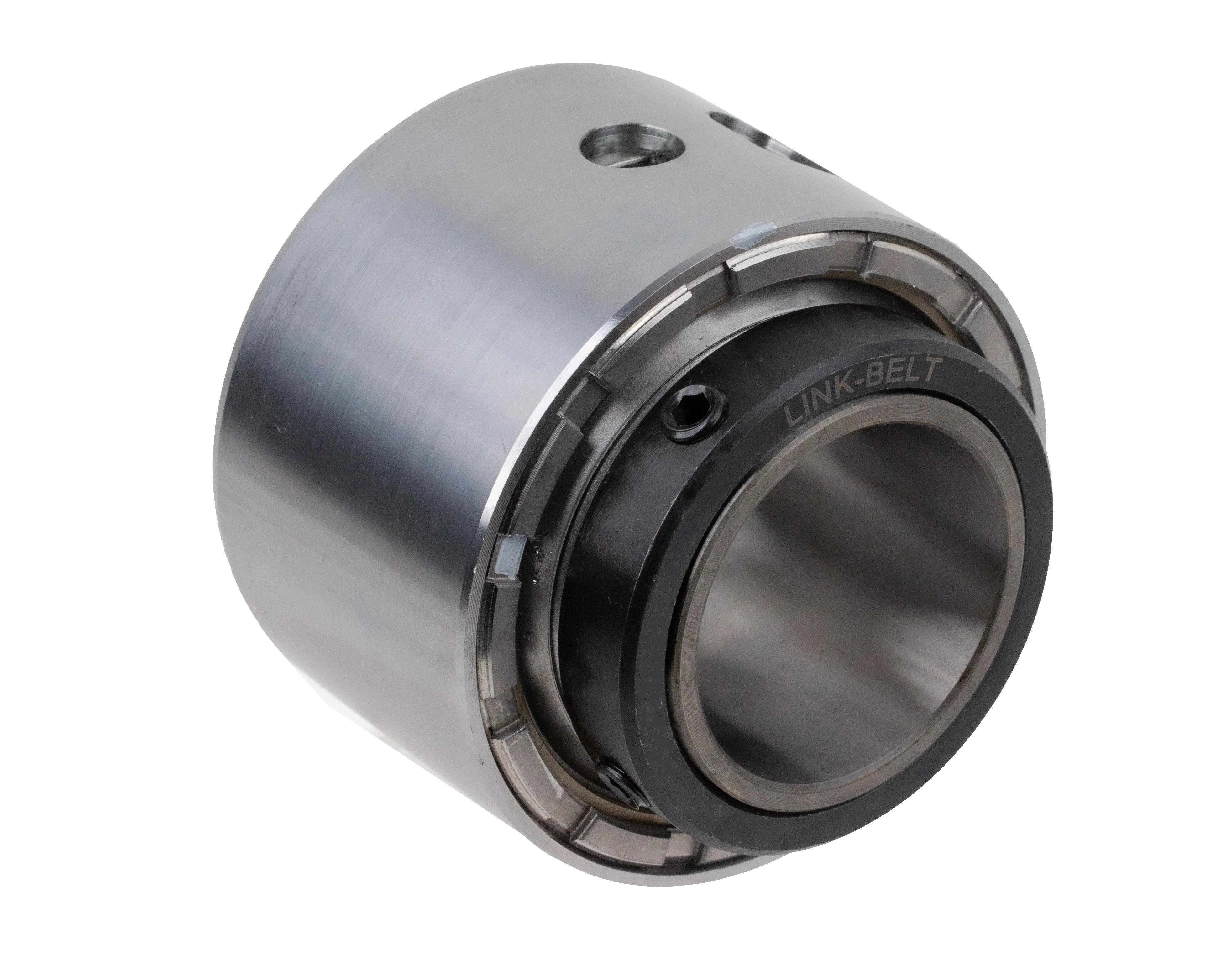

Link-Belt® 10412647 B22400 Mounted Spherical Roller Bearing Cartridge Block, 2 in Dia Bore, 3.833 in OD, 3-1/8 in W, 25900 lb Dynamic/33200 lb Static Load

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKCSEB22432H
  • Alt Part Number: CSEB22432H
  • MPN: 10412647
  • UPC: 662327012946
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Link-Belt® Spherical Roller Bearing Cartridge Block, Mounted, Series: B22400, 2 in Bore Dia, 3.833 in Outside Dia, 3-1/8 in Width, 25900 lb Dynamic/33200 lb Static Load, 2150 rpm Maximum, Uncoated

Bore Diameter      :      2 in
Finish      :      Uncoated
Load Capacity      :      25900 lb Dynamic/33200 lb Static
Maximum Speed      :      2150 rpm
Outside Diameter      :      3.833 in
Series      :      B22400
Type      :      Mounted
Width      :      3-1/8 in
  • Hardened spring locking single collar locks inner ring securely to shaft
  • Type H floating labyrinth seal
  • Steel housing
  • Misalignment capabilities total of 4 deg
  • Factory set clearance and lubrication
  • Extended inner ring
  • Separable outer rings
  • Bearings are easy to mount, sealed, pre-lubricated and do not require bearing adjustment during mounting
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_TDSB28360418_Manual.pdf
  • videoVIDEO LINK https://www.youtube.com/embed/UqK3ncamgek?wmode=opaque&autoplay=0&autohide=1&showinfo=0&controls=2&rel=0&enablejsapi=1
