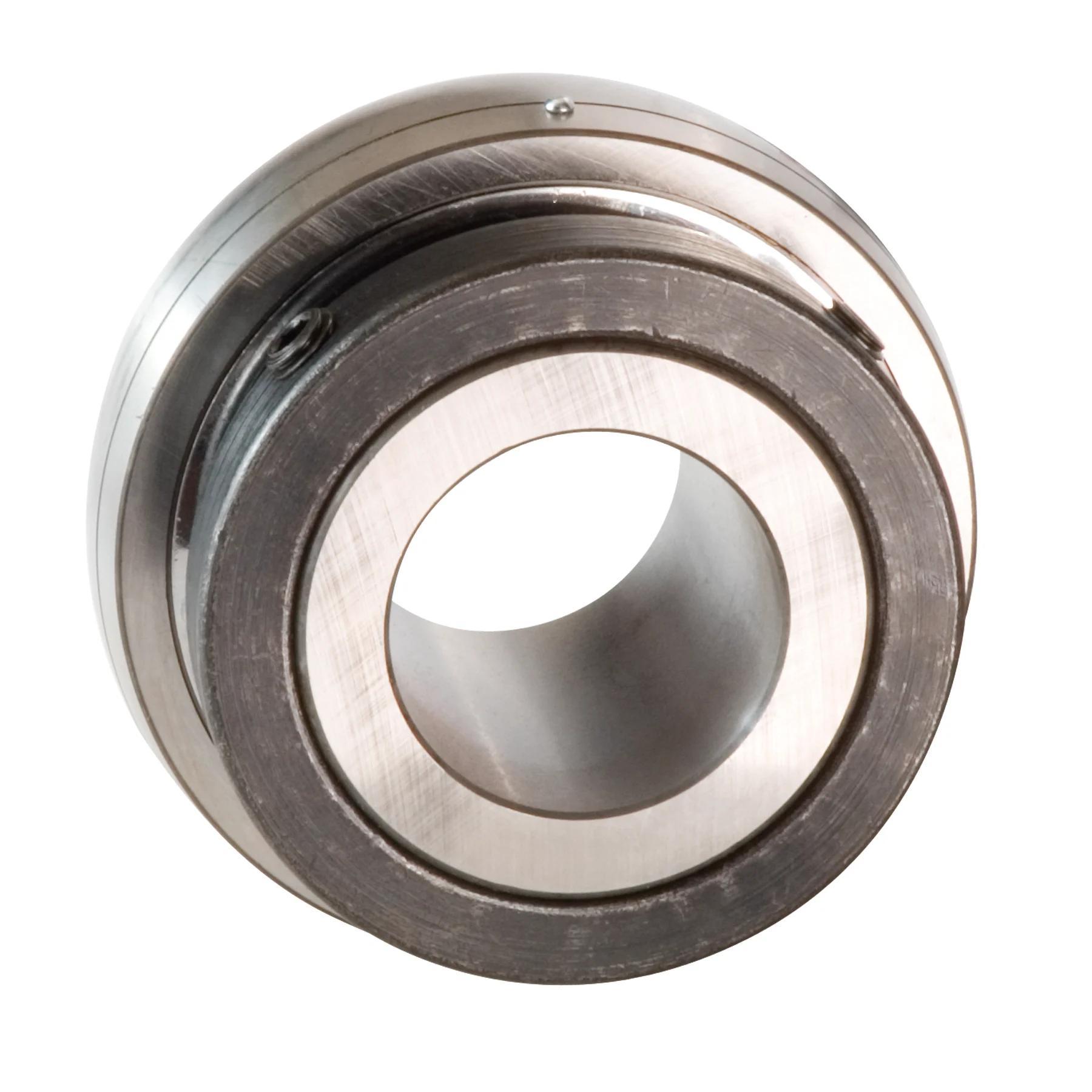

Link-Belt® 10411357 LNKUG316L
Link-Belt® 10411357 300 Heavy Duty Unmounted Ball Bearing With Collar and Setscrews, 1 in Bore Dia, 2.4409 in OD, 1-43/64 in W, 4810 lb Dynamic/2450 lb Static
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKUG316L
- Alt Part Number: UG316L
- MPN: 10411357
- UPC: 662327882792
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.
Link-Belt® Ball Bearing, Heavy Duty Unmounted, Series: 300, 1 in Bore Dia, 2.4409 in Outside Dia, 1-43/64 in Width, 4810 lb Dynamic/2450 lb Static, Alloy Steel Bearing, 9350 rpm Maximum, 225 deg F, Uncoated
| Bearing Material | : | Alloy Steel |
| Bore Diameter | : | 1 in |
| Finish | : | Uncoated |
| Load Capacity | : | 4810 lb Dynamic/2450 lb Static |
| Maximum Speed | : | 9350 rpm |
| Outside Diameter | : | 2.4409 in |
| Series | : | 300 |
| Temperature Rating | : | 225 deg F |
| Type | : | Heavy Duty Unmounted |
| Width | : | 1-43/64 in |
- Provides a cool running, quiet, high-speed and high-load capacity bearing
- Spyglass Optical Strain Sensor (OSS) technology
- Positive locking system minimizes vibration
- Case carburized inner ring resists fracture under shock and heavy loads
- Tapered adapter assembly
- Wide inner ring is for greater contact surface between shaft and bearing
- Setscrew locking device
- Clearance sea
